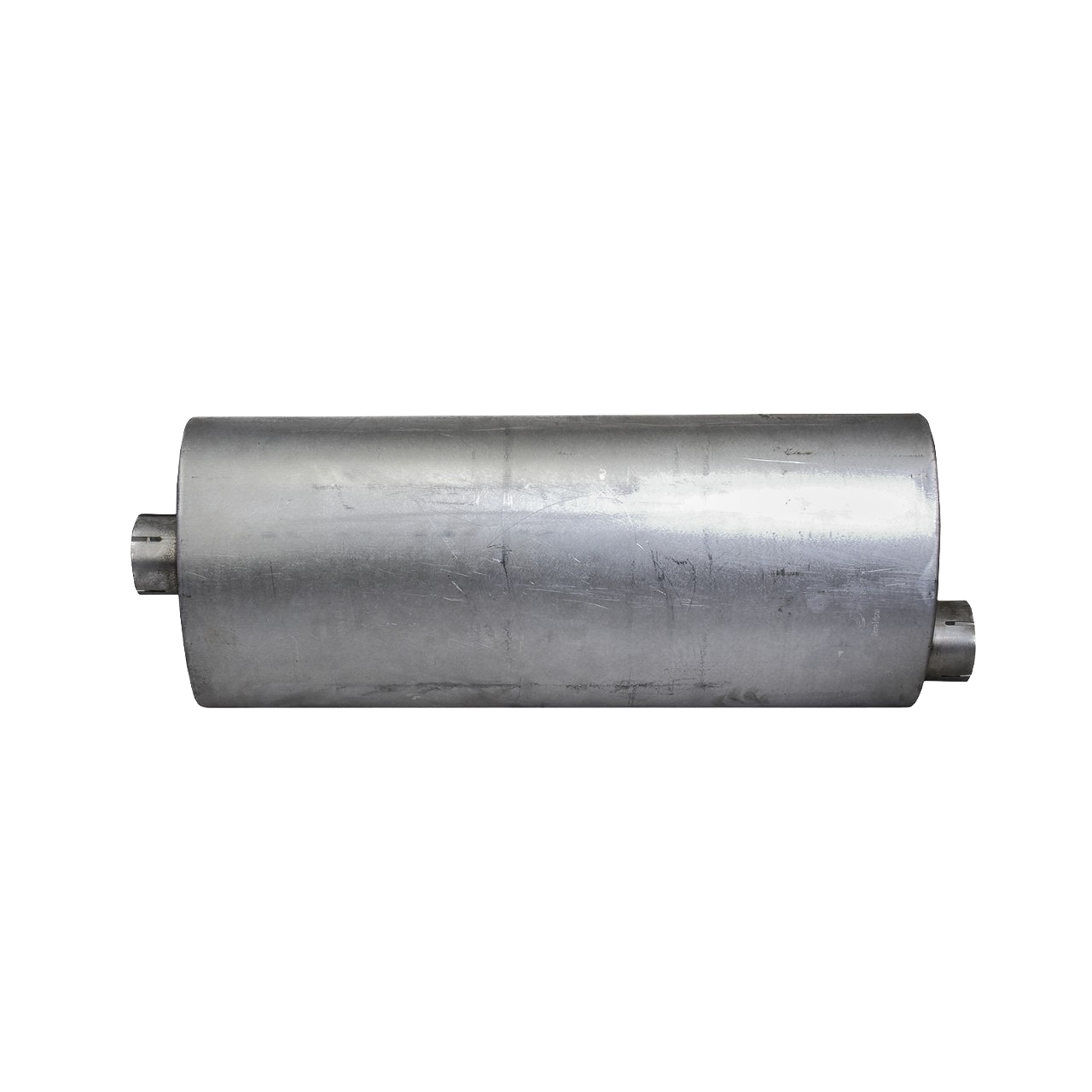

Donaldson | P174296. MUFFLER, OVAL STYLE 2 WRAPPED

Donaldson

Donaldson | P174296. MUFFLER, OVAL STYLE 2 WRAPPED

Part Number: P174296

Muffler, Oval Style 2 Wrapped

SKU: P174296 Category: Exhaust

Description
Additional information

Description

Muffler, Oval Style 2 Wrapped

Additional information

Attenuation hr	28 DBA
Attenuation lr	22 DBA
Body diameter maximum	389 MM / 15.31 IN
Body diameter minimum	262 MM / 10.31 IN
Body length	917.5 MM / 36.12 IN
Filter style	Style 2
Filter type	Wrapped
Inlet diameter	102.11 MM / 4.02 IN
Manufacturer	Donaldson
Outlet diameter	102.11 MM / 4.02 IN
Overall length	1066.8 MM / 42 IN
Rated flow hr	39.2 CMM
Rated flow lr	22.6 CMM
Rated flow mr	32 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	3:00
Outlet clock position	9:00
