Description

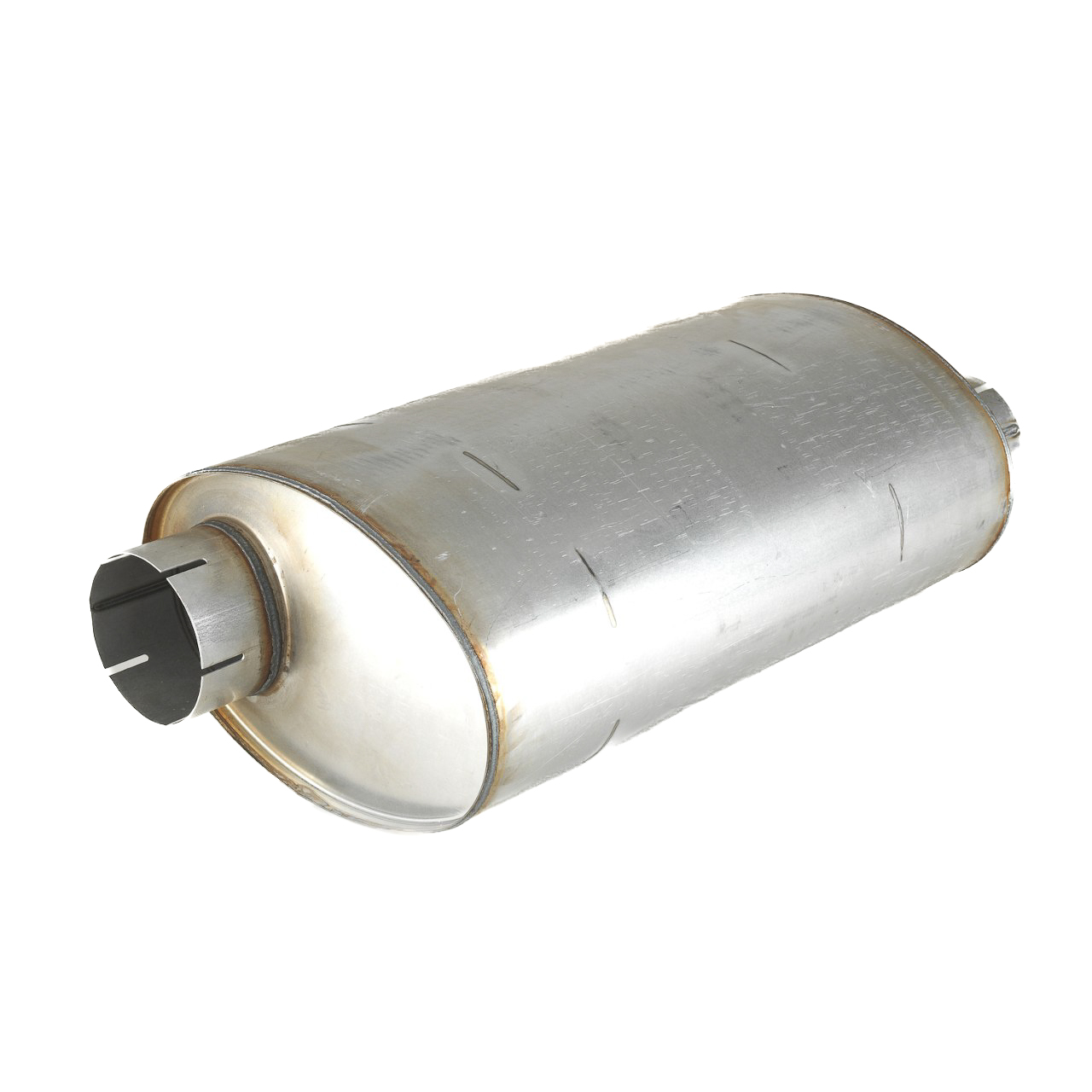

Muffler, Oval Style 2
Donaldson
P174244
Additional information
| Attenuation hr | 20 DBA |
|---|---|
| Attenuation lr | 15 DBA |
| Body diameter maximum | 381 MM / 15 IN |
| Body diameter minimum | 254 MM / 10 IN |
| Body length | 647.7 MM / 25.5 IN |
| Filter style | Style 2 |
| Inlet diameter | 127.64 MM / 5.03 IN |
| Manufacturer | Donaldson |
| Outlet diameter | 127.64 MM / 5.03 IN |
| Overall length | 825.5 MM / 32.5 IN |
| Rated flow hr | 81.7 CMM |
| Rated flow lr | 47.2 CMM |
| Rated flow mr | 66.7 CMM |
| Back pressure low range | 25 MM HG / 0.98 IN HG |
| Back pressure mid range | 51 MM HG / 2.01 IN HG |
| Back pressure high range | 76 MM HG / 2.99 IN HG |
| Inlet clock position | 3:00 |
| Outlet clock position | 9:00 |
