Graco MM2211 - MINI METER-FLO PUMP

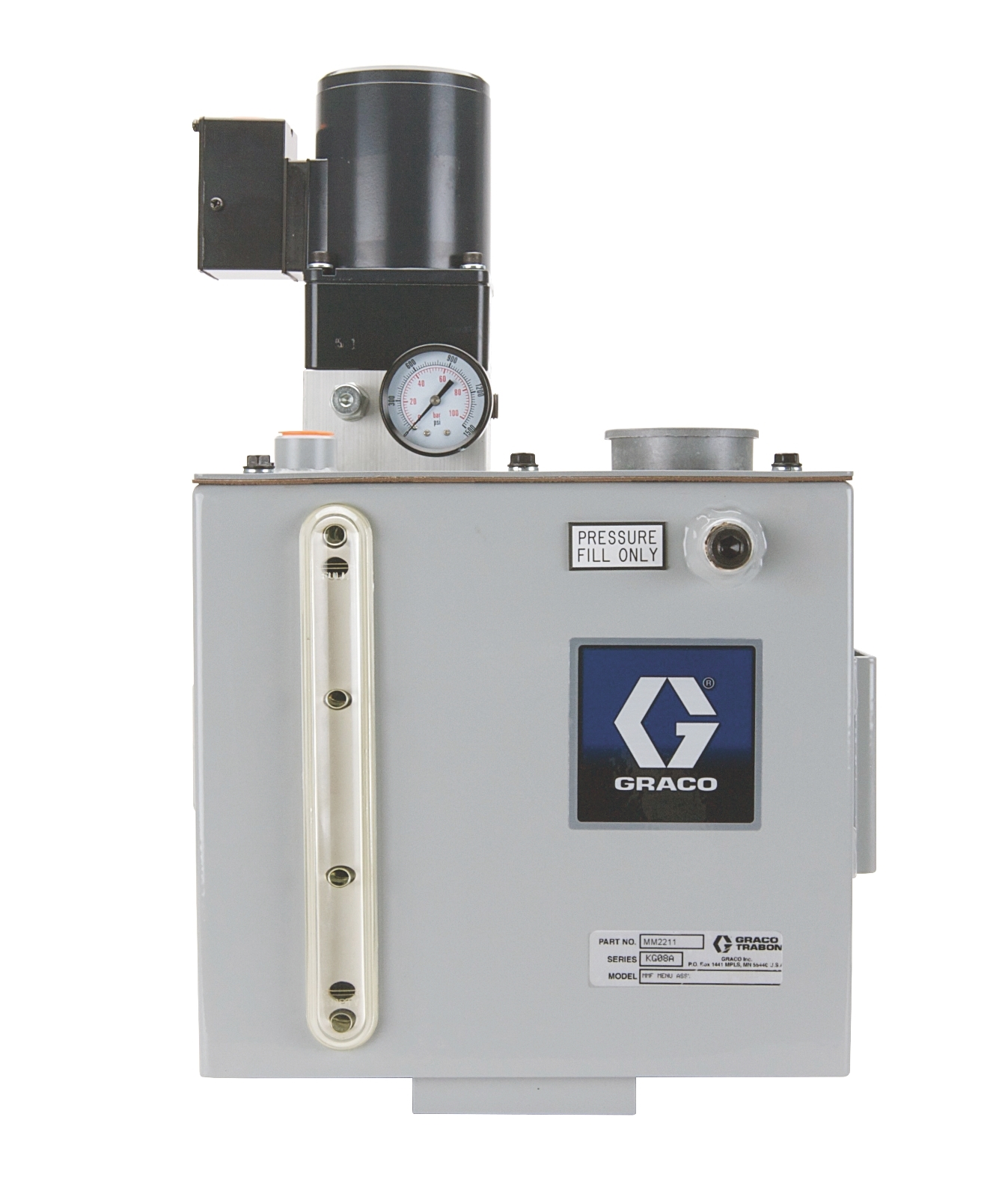

Graco MM2211 – MINI METER-FLO PUMP

Part Number: MM2211

Miniature Meter-Flo® Pump, 3 gal (24 pint) Reservoir, 14 cu in/min (229 cc/min), 1,500 PSI (103 BAR), HP Switch, Low Level Switch (Reed-Type, SPST)

Description

Miniature Meter-Flo® Pump, 3 gal (24 pint) Reservoir, 14 cu in/min (229 cc/min), 1,500 PSI (103 BAR), HP Switch, Low Level Switch (Reed-Type, SPST)

Manufacturer	Graco
Primary UOM Code	EA
UPC Code	633955369030
Model	Miniature Meter-Flo
Application	In-Plant Machinery
Compatible material	Oil
For use with	Series Progressive Oil Lubrication Systems; Single Line Resistive Oil Lubrication Systems
Maximum working pressure	103 BAR / 10300 KPA / 10.3 MPA / 1500 PSI
Product type	Electric Piston Pump
Compatible metering device	Series Progressive
Fluid outlet size	0.25 IN / 6.3500 MM
Fluid outlet thread type	NPT
Includes	Level Switch
Maximum cst grade	15000 CST
Maximum flow rate	5 CI/MIN
Minimum cst grade	160 CST
Minimum voltage	103.5 VAC
Overall depth	12 IN / 30.5 CM / 305 MM
Overall height	17.29 IN / 43.9 CM / 439 MM
Overall width	32.3 CM / 12.72 IN / 323 MM
Power connection type	3 Wire Hook-Up Inside Junction Box
Power type	Electric
Reservoir size	3 GAL / 11.36 L / 24 PT
Voltage	115 VAC
