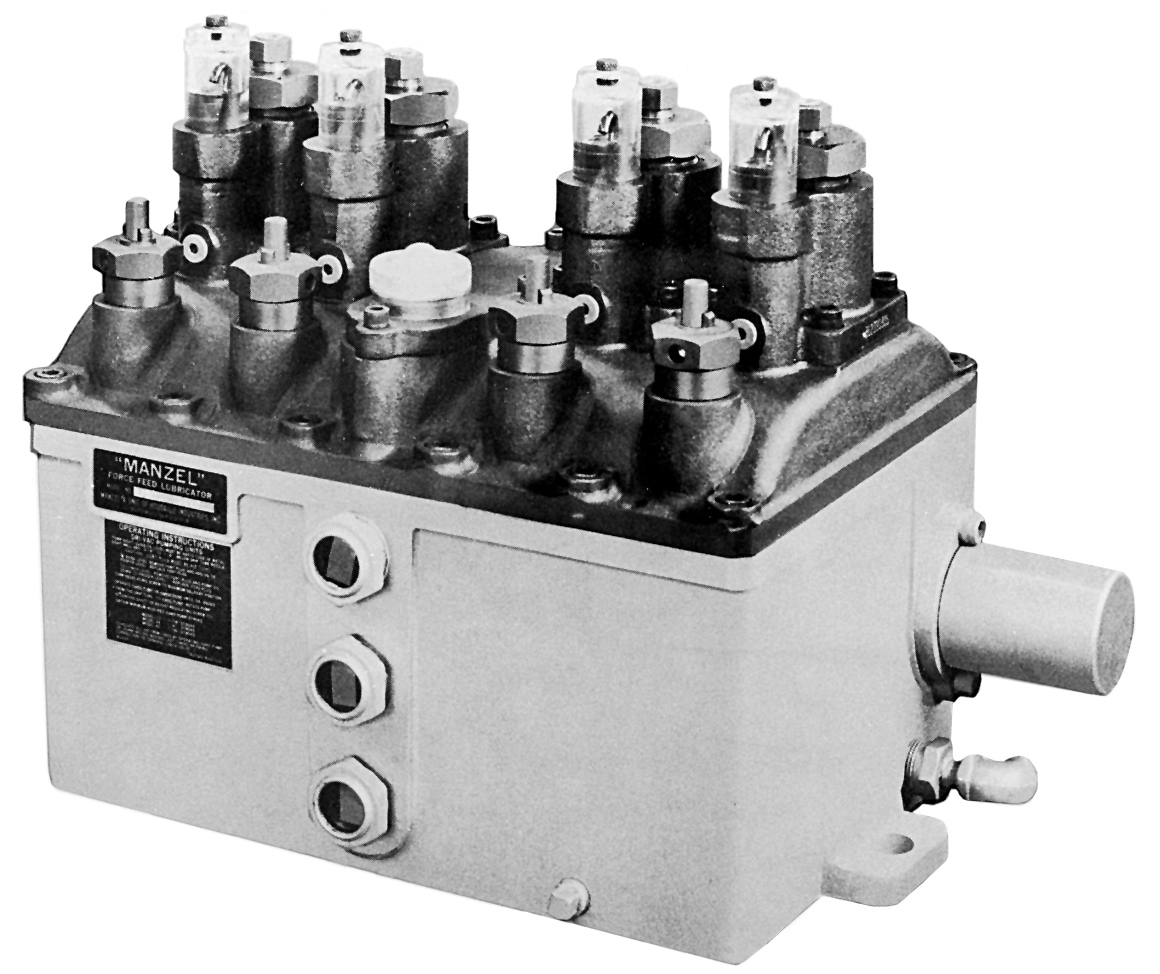

Graco 564276 - HP-50 LUBRICATOR, 0 FD

Graco 564276 – HP-50 LUBRICATOR, 0 FD

Part Number: 564276

HP-50 Lubricator without Pumps or Options

Description

HP-50 Lubricator without Pumps or Options

Compatible material	Oil
Manufacturer	Graco
Maximum drive speed	36 RPM
Maximum fluid viscosity	5000 SUS
Maximum operating temp	49 °C / 120 °F
Maximum working pressure	3447 BAR / 344700 KPA / MPA / 50000 PSI
Minimum Operating Temperature	-29 °C / -20 °F
Minimum drive speed	3 RPM
Minimum fluid viscosity	100 SUS
Model	Manzel
Overall depth	22.68 IN / 57.61 CM / 576.1 MM
Overall height	14.77 IN / 37.5 CM / 375 MM
Overall width	29.36 CM / 11.56 IN / 293.6 MM
Primary application	For lubricating compressor and circulator cylinder walls, heavily loaded bearings and other moving parts.
Primary UOM Code	EA
Pump size	0.6 CM / 1/4 IN / 6.3 mm
Reservoir material	Cast Iron
Series	HP-50
UPC Code	633955355569
Max num drops per stroke	4 Drops
Maximum reservoir capacity	2.25 GAL / 8.5 L / 18 PT /9 QT
Min num of drops per stroke	1 Drops
Product_type	Box Lubricator
