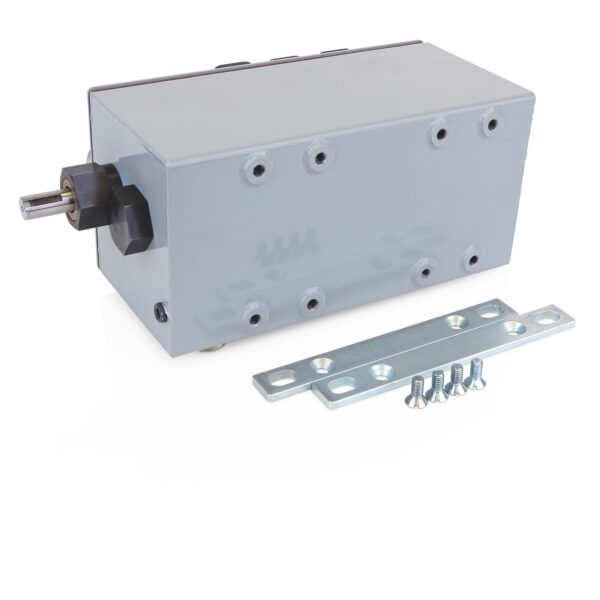

Graco 24W636 - MBL LUBRICATOR,4 PINT,118:1,3 PUMP,1/4,RH

Graco 24W636 – MBL LUBRICATOR,4 PINT,118:1,3 PUMP,1/4,RH

Part Number: 24W636

Manzel® MB118 Series Lubricator – 4 Pint (1.9 Liter) Reservoir (4 Pump Stations Max), 1/4 in GBL 7500 Pump (qty 3), 118:1 drive on right hand end

Description

Manzel® MB118 Series Lubricator – 4 Pint (1.9 Liter) Reservoir (4 Pump Stations Max), 1/4 in GBL 7500 Pump (qty 3), 118:1 drive on right hand end

Compatible material	Oil
Drive option	Internal Gear Reduction
Includes	24J392 GBL 7500 1/4" Suction pumps (qty 3)
Lubricator feed type	Suction Feed;Force Feed
Lubricator gear ratio	118:01:00
Manufacturer	Graco
Maximum drive speed	1800 RPM
Maximum fluid viscosity	5000 SUS
Maximum operating temp	60 °C / 140 °F
Maximum output volume	0.024 IN³
Maximum working pressure	414 BAR / 41369 KPA / MPA / 6000 PSI
Minimum Operating Temperature	-29 °C / -20 °F
Minimum drive speed	354 RPM
Minimum fluid viscosity	80 SUS
Model	Manzel
Number of pumps	3
Outlet size	8-Jan
Outlet thread gender	Female
Outlet thread type	NPT;NPTF
Overall depth	14.25 IN / 36.2 CM / 362 MM
Overall height	9.67 IN / 24.6 CM / 245 MM
Overall width	13.97 CM / 5.5 IN / 139.7 MM
Primary application	MB118 is the right size for triplend quintuplex mud pump applications.
Primary UOM Code	EA
Pump size	0.635 CM / 1/4 IN / 6.35 mm
Reservoir material	Steel
Series	MB
UPC Code	755652280019
Wetted material	Carbon Steel;Nylon;Fluoroelastomer;Cork;Brass;Aluminum
Max num drops per stroke	12 Drops
Max num of pump stations	4
Maximum number of strokes	15 spm
Maximum reservoir capacity	0.5 GAL / 1.9 L / 4 PT /2 QT
Minimum number of strokes	3 SPM
Piston size	0.64 CM / 0.25 IN / 6.35 MM
Product_type	Box Lubricator
