Description
Recommended for high-pressure hydraulic lines in longwall mining equipment and roof-support systems; petroleum-based or water emulsion fluids. Two wire braid hose with static and dynamic pressure ratings listed on the hose.
Gates

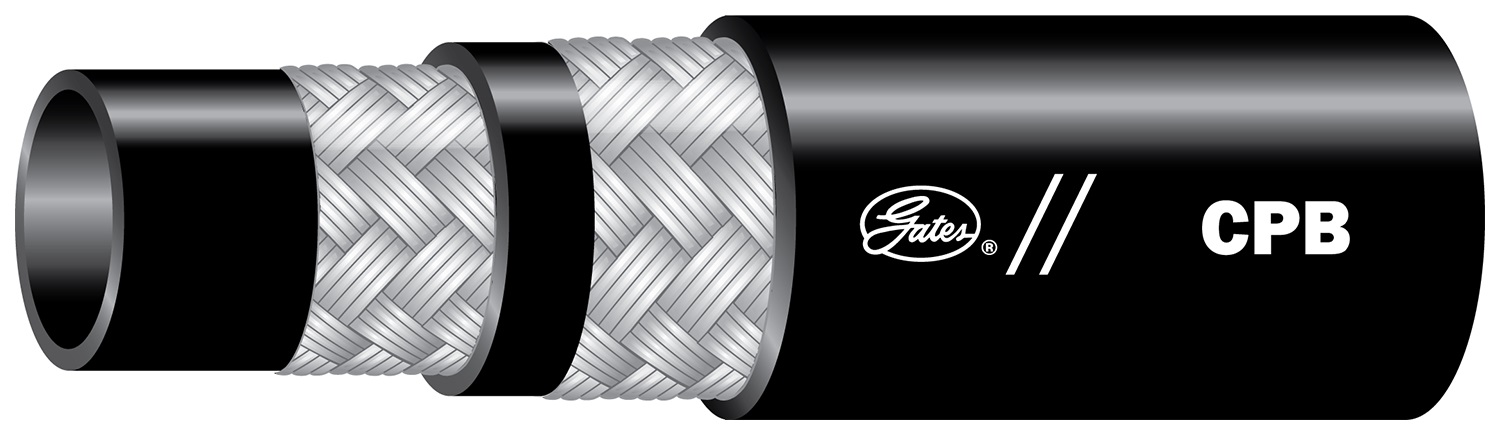

Gates | 46572550. 8CPB XREEL. CPB Mine Hose
46572550
Part Number: 46572550
Recommended for high-pressure hydraulic lines in longwall mining equipment and roof-support systems; petroleum-based or water emulsion fluids. Two wire braid hose with static and dynamic pressure ratings listed on the hose.
Additional information
| Manufacturer | Gates |
|---|---|
| Dash Size | 8 |
| Maximum Temperature | +100 C / +212 F |
| Minimum Order Quantity | 300 |
| UOM | FT |
| Hose Pressure | Variable Pressure-High |
| Reinforcement | 2-braid, wire |
| Dynamic WP | 5250 psi / 362 bar |
| Min burst pressure | 21000 psi / 1447.9 bar |
| Minimum Temperature | -40 C / -40 F |
| Hose ID | 0.5 in / 12.7 mm |
| Hose OD | 0.87 in / 22.1 mm |
| Tube material | Nitrile, Hyd Fluids, Phosphate Esters, Water Glycol |
| Cover Material(s) | Nitrile |
| Cover Type | Standard |
| Cover Color | Black |
| Length | 300 ft / 91 m |
| Min bend radius | 6 in / 558.13 mm |
| Meets MSHA 2G | YES |
| Second Name | 46572550 |
| Product Line | CPB Mine Hose |
