Graco 77X112 - KIT,INJ,STDDRUM,24VDC,HP,400#

Graco 77X112 – KIT,INJ,STDDRUM,24VDC,HP,400#

Part Number: 77X112

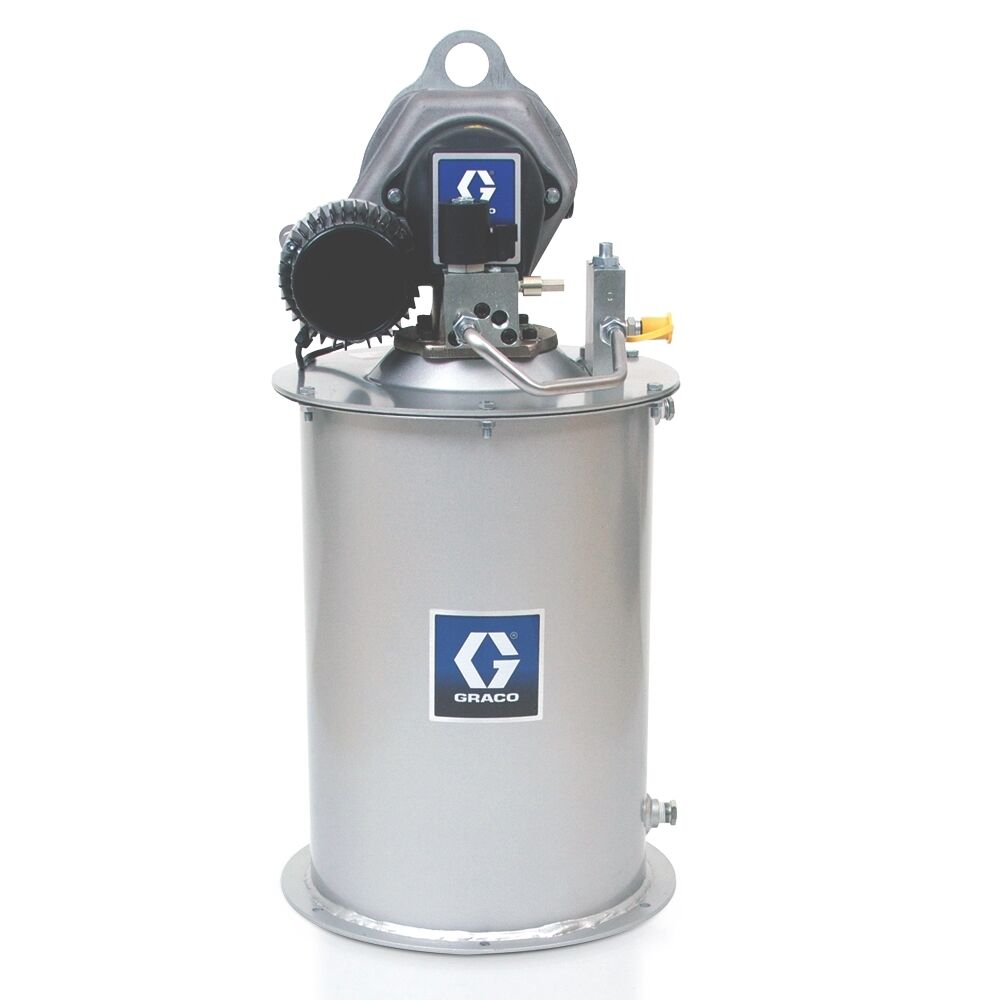

Standard Drum Injector Kits – 24 VDC HP Pump, Vent Valve, Cover with Tube-in-Tube for 400 lb (180 kg) Reservoir

Description

Standard Drum Injector Kits – 24 VDC HP Pump, Vent Valve, Cover with Tube-in-Tube for 400 lb (180 kg) Reservoir

Manufacturer	Graco
Primary application	Electric pumps for heavy duty automatic lubrication and transfer systems.
Primary UOM Code	EA
UPC Code	633955268609
Application	In-Plant Machinery;Off-Road Equipment
Compatible material	Grease
Maximum working pressure	345 BAR / 34500 KPA / 34.5 MPA / 5000 PSI
Product type	Electric Piston Pump
Air inlet size	1/4 IN / 6.35 MM
Air inlet thread type	NPT
Compatible metering device	Single Line Parallel
Fluid outlet size	0.375 IN / 9.5250 MM
Fluid outlet thread type	NPT
Includes	HP Pump 24 VDC;Vent Valve;Tube-in-Tube;Cover for 400 lb (180 kg) reservoir
Ip rating	IP69K
Minimum cst grade	40 CST
Overall height	44.3 IN / 112.5 CM / 1125 MM
Overall width	27.9 CM / 11 IN / 279 MM
Power connection type	M23
Power type	Pneumatic
Reservoir size	400 LB
Voltage	24 VDC
Weight	27.22 KG / 60 LB
