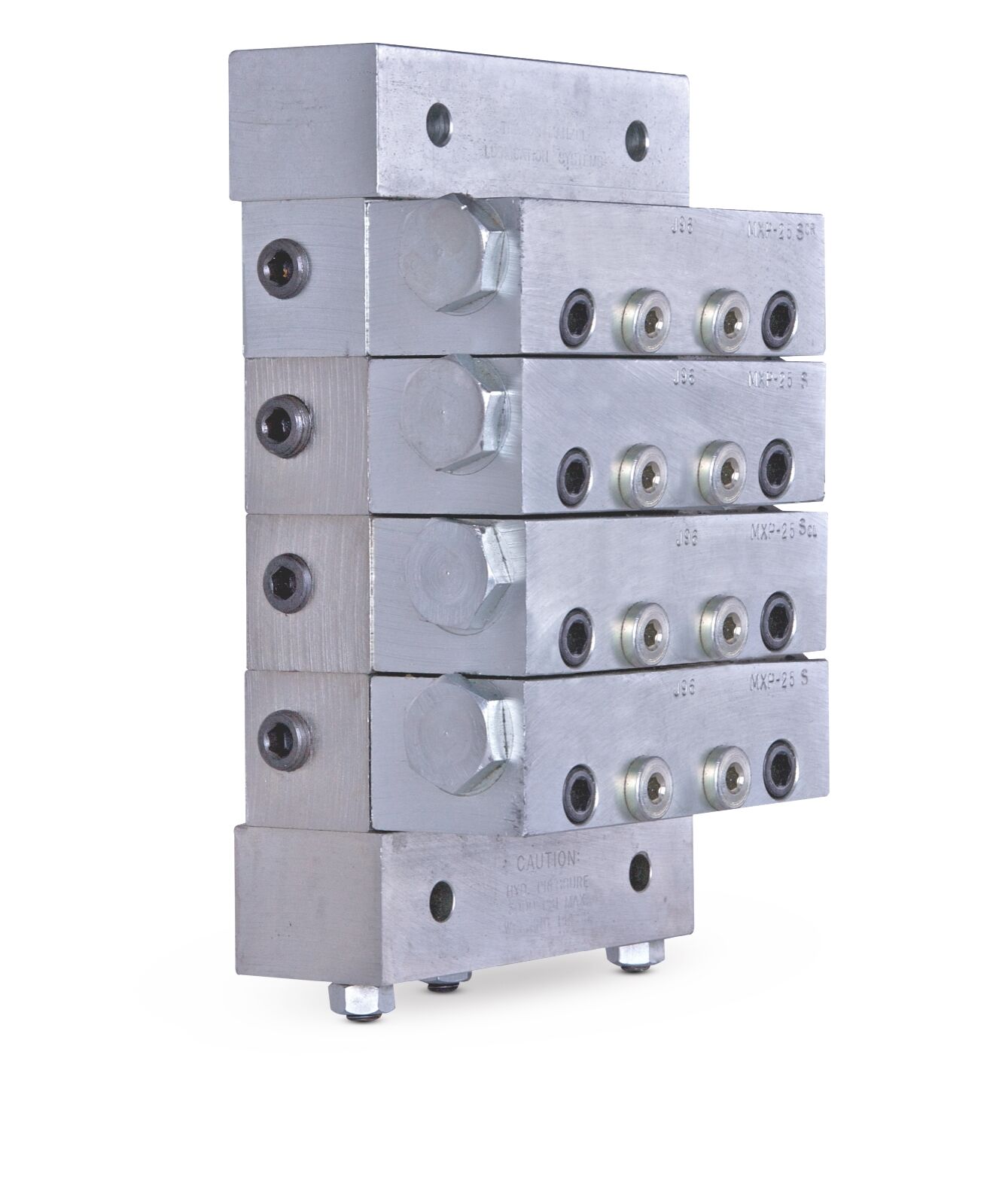

Trabon® MXP Modular Divider Valve – MXP-75T – 0.075 in³ (1.23 cm³)
Graco
Graco 562815 – VAVLE, TWIN MXP-75T
Part Number: 562815
Trabon® MXP Modular Divider Valve – MXP-75T – 0.075 in³ (1.23 cm³)
Additional information
| Manufacturer | Graco |
|---|---|
| Primary application | Ideal for heavy-duty and large bearing applications with wide temperature variations and high volume requirements. |
| Primary UOM Code | EA |
| UPC Code | 633955348509 |
| Model | Trabon |
| Application | Off-Road Equipment;In-Plant Machinery |
| Compatible material | Oil;Grease |
| Cycle indicator | None |
| Divider valve series | MXP |
| Minimum working pressure | BAR / KPA / MPA / 200 PSI |
| Number of outlets | 2 |
| Product type | Divider Valve |
| Max cycle rate | 200 CPM |
| Max nlgi grade | #2 |
| Max working pressure | 207 BAR / 20700 KPA / MPA / 3000 PSI |
