Description
Main Line (Tube) – 5/16 INCHes OD x .059 INCHes wall, Black, 60 feet, Burst Pressure Min. – 1,500 PSI at 75º F
Graco

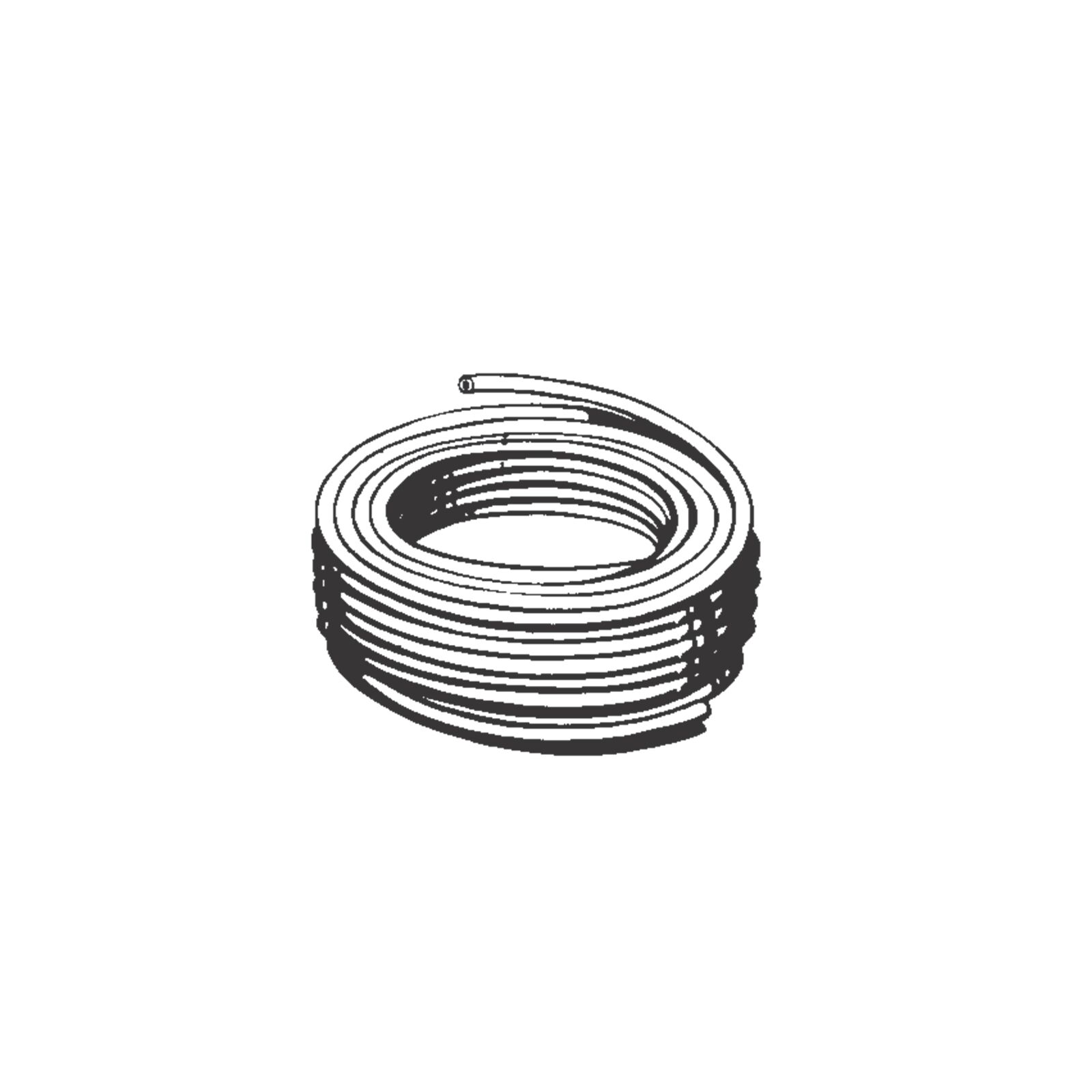

Graco 561132 – TUBE, 5/16 OD 60 FT BLK
Part Number: 561132
Main Line (Tube) – 5/16 INCHes OD x .059 INCHes wall, Black, 60 feet, Burst Pressure Min. – 1,500 PSI at 75º F
Additional information
| Manufacturer | Graco |
|---|---|
| Primary application | For use with Pneumatic Grease Jockey Systems. |
| Primary UOM Code | EA |
| UPC Code | 633955328532 |
| Application | On-Road Vehicles |
| Compatible material | Oil;Grease |
| Maximum working pressure | 26.25 BAR / 262.5 KPA / MPA / 375 PSI |
| Product type | Fluid Tube |
| Inside diameter | 0.2 IN / 5 MM |
| System of measurement | Imperial |
