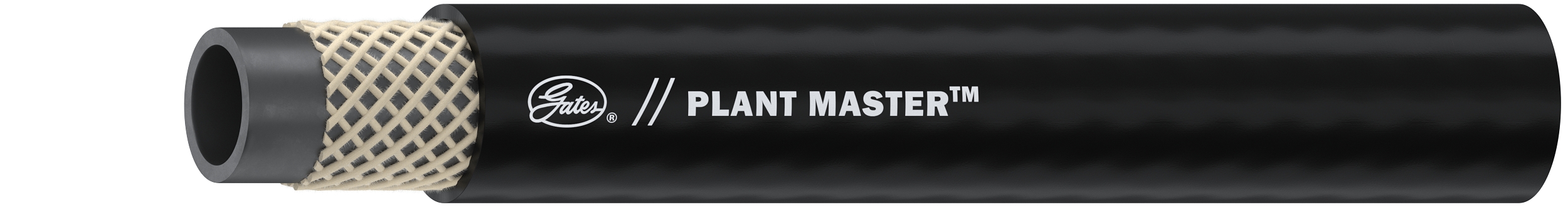

Plant Master™
RECOMMENDED FOR: Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in–plant operations. Suitable for light agricultural spraying, such as dilute solutions of herbicides.
RECOMMENDED FOR: Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in–plant operations. Suitable for light agricultural spraying, such as dilute solutions of herbicides.
| Manufacturer | Gates |
|---|---|
| Cover color | Black |
| Cover material | EPDM – Type P |
| Length | 600 ft / 182.9 m |
| Max temperature | 93 C / 200 F |
| Min bend radius | 6 in / 152 mm |
| Min order quantity | 5400 |
| Min temperature | -40 C / -40 F |
| Reinforcement | Synthetic textile |
| Tube material | EPDM – Type P |
| UOM | FT |
| Working pressure | 200 psi / 13.8 bar |
| Hose ID | 0.444 in / 12.401 mm |
| Hose OD | 0.488 in / 23.403 mm |
| Tube characteristics | Limited oil resistance |
| Vacuum (Hg) | 20 in / 508 mm |
| Cover standard | ARPM Class C |
| Tube standard | ARPM Class C |
| Second Name | 32045689 |
