Description
Global G1 hose is recommended for medium-pressure hydraulic lines and is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.
Gates

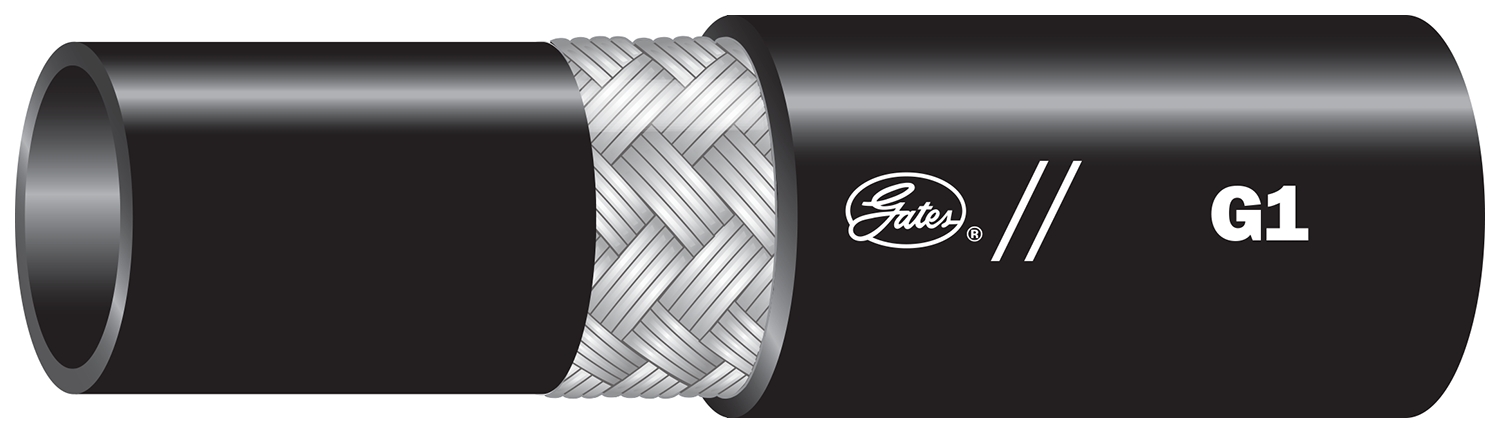

Gates | 46574940. 4G1 X50FT. G1 Hydraulic Hose
46574940
Part Number: 46574940
Global G1 hose is recommended for medium-pressure hydraulic lines and is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.
Additional information
| Manufacturer | Gates |
|---|---|
| Dash size | 4 |
| Max temperature | +100 C / +212 F |
| UOM | EA |
| Hose pressure | Variable Pressure-Low |
| Reinforcement | 1-braid, wire |
| Dynamic WP | 3275 psi / 225.8 bar |
| Min burst pressure | 13100 psi / 903.2 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 0.25 in / 6.4 mm |
| Hose OD | 0.53 in / 13.5 mm |
| Tube material | Nitrile – Type C, Hyd Fluids, Phosphate Esters, Water Glycol |
| Cover material | Nitrile/PVC – Type C2 |
| Cover type | Standard |
| Cover color | Black |
| Length | 50 ft / 15 m |
| Min bend radius | 4 in / 45.7 mm |
| SAE specs & DOT | 100R1 |
| Meets MSHA 2G | YES |
| Second Name | 46574940 |
| Product line | G1 Hydraulic Hose |
