Description
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for
easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
Gates
4C5E-4RFJSX45
723520405

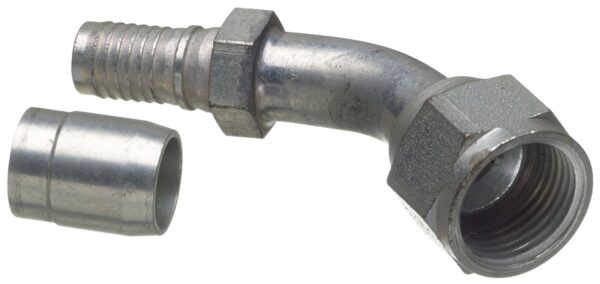

Field Attachable C5E Couplings
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for
easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
Additional information
| Manufacturer | Gates |
|---|---|
| Coating | Zinc-plated |
| Configuration | Bent Tube |
| End size | 4 |
| End type | FJSX |
| Fitting type | Dual Seat FJX/SAE |
| Hose recommend | C5E |
| Material | Steel |
| Thread size | 7/16-20 |
| UOM | EA |
| Angle | 45 |
| Swivel | YES |
| Hose dash size | 4 |
| Cut off length | 1.2 in / 30.48 mm |
| SAE/ISO/DOT specifications | DOT FMVSS 106 Type A1 |
| Second Name | 723520405 |
