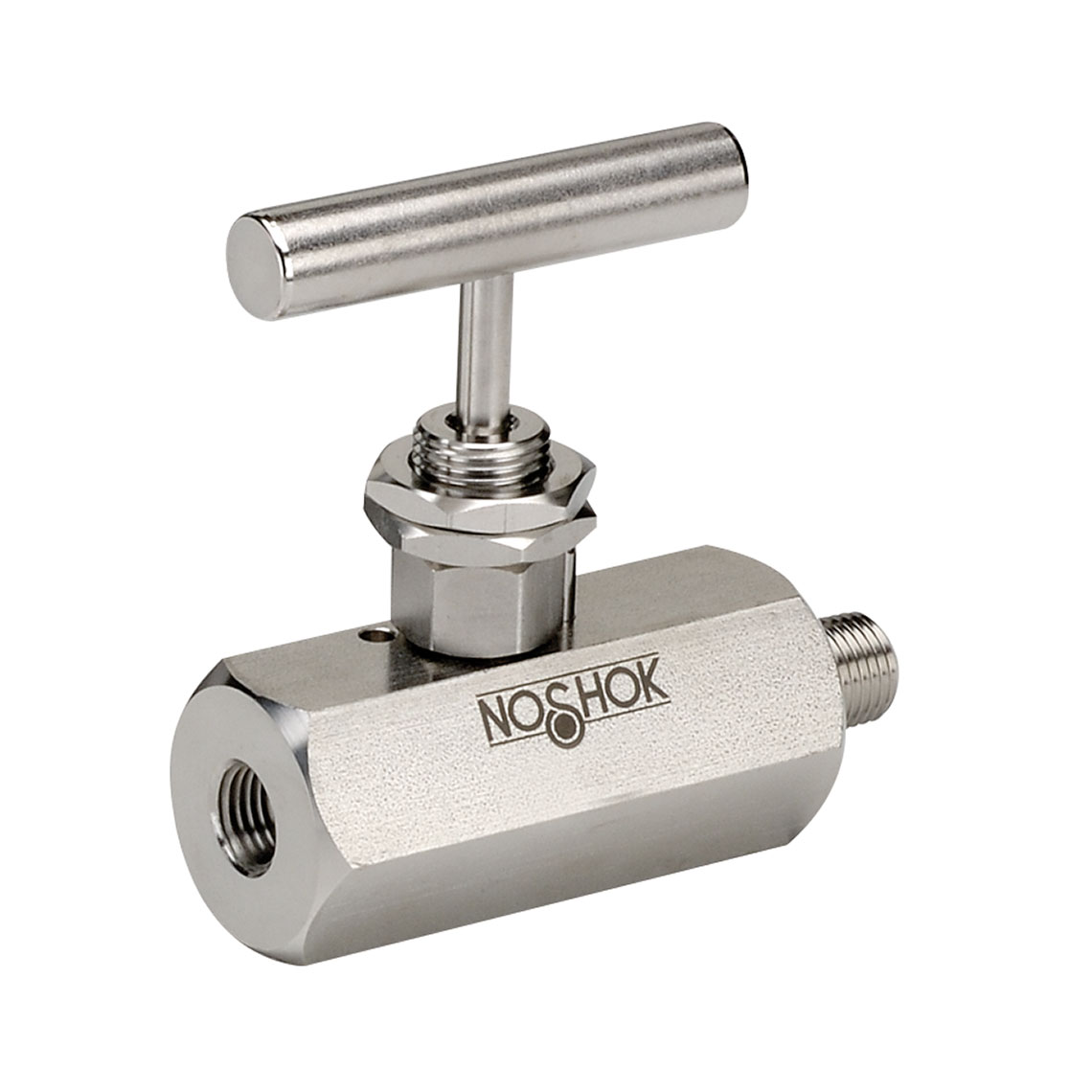

Noshok | 402-FFAS-PM2. 400 Series Standard Needle Valves with Hard Seat

Noshok

Noshok | 402-FFAS-PM2. 400 Series Standard Needle Valves with Hard Seat

Part Number: 402-FFAS-PM2

100% helium leak tested to 1 x 10^-4 ml/s for guaranteed performance and reliability
Blow-out proof stem provides a secondary stem seal in the full open position
FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional (certain NPT sizes only)

SKU: 402-FFAS-PM2 Category: Unsorted

Description
Additional information

Description

100% helium leak tested to 1 x 10^-4 ml/s for guaranteed performance and reliability
Blow-out proof stem provides a secondary stem seal in the full open position
FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional (certain NPT sizes only)

Additional information

Manufacturer	Noshok
Seat	Hard Seat
Valve type	Female-Female Angle
Valve material	Stainless Steel
Body material	Electropolished 316 Stainless Steel
Connection size	1/4 in
Product line	400 Series Standard Needle Valves with Hard Seat
