Part Number: 2704-FFS

Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation

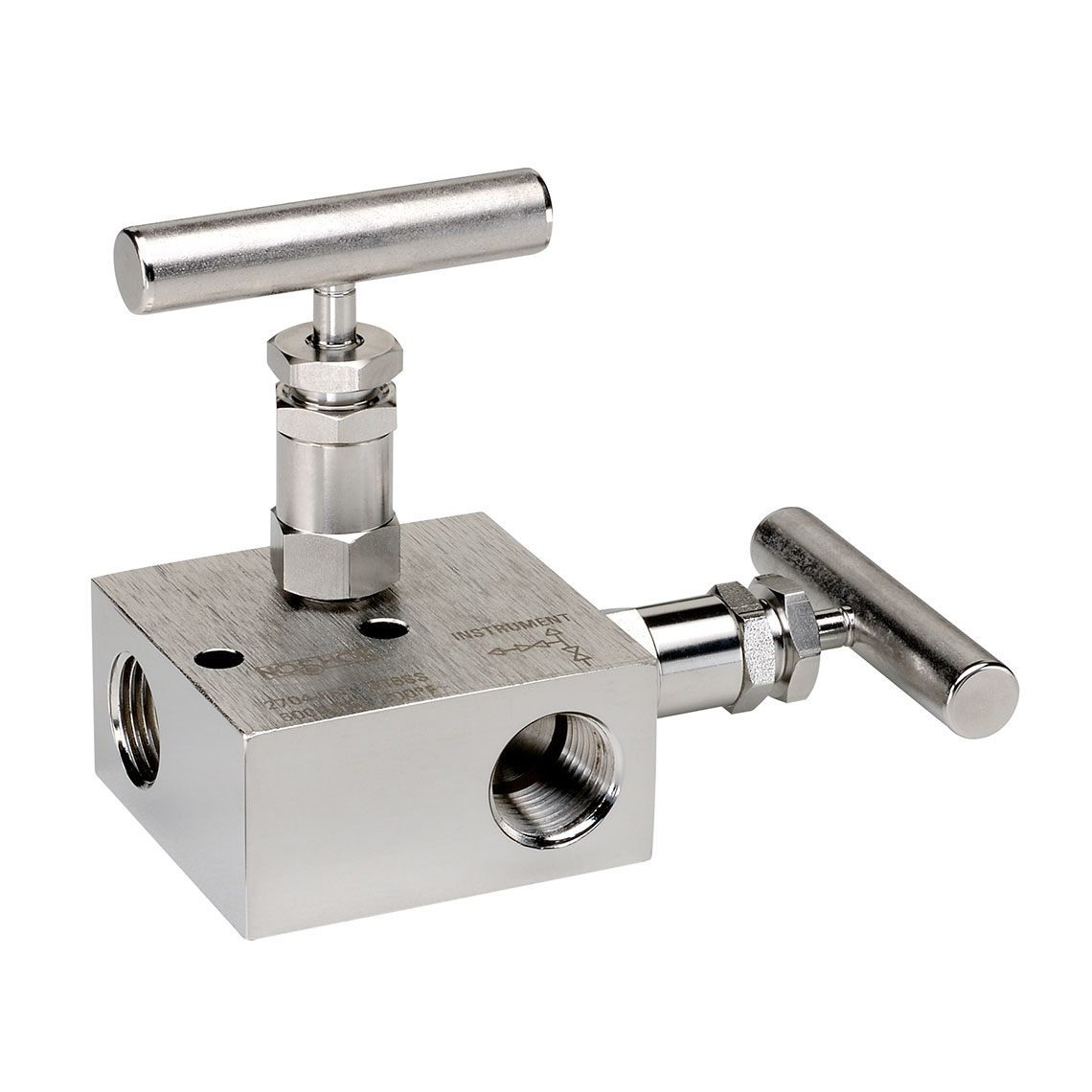

Block valve is located on the right and the bleed valve is located on top in a 90º orientation, venting is to the left

SKU: 2704-FFS Category: 2604/2704 Series 0.156 in. Orifice Block and Bleed 2 Manifold Valves with Hard Seat and Soft Tip

Description
Additional information

Description

Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
Block valve is located on the right and the bleed valve is located on top in a 90º orientation, venting is to the left

Additional information

Manufacturer	Noshok
Connection Type	National Pipe Thread (NPT)
Series	2-Valve
Seat	Soft Tip
Valve type	Female-Female
Valve material	Stainless Steel
Body material	Zinc-nickel plated steel, electropolished 316 Stainless Steel
Connection size	1/2 in
Pressure rating at 200F	6,000 psi
Orifice size	0.156 in
Product line	2604/2704 Series 0.156 in. Orifice Block and Bleed 2 Manifold Valves with Hard Seat and Soft Tip
