Graco 25R830 - G-MINI PUMP,12V,.5L,CON,DIN

Graco 25R830 – G-MINI PUMP,12V,.5L,CON,DIN

Part Number: 25R830

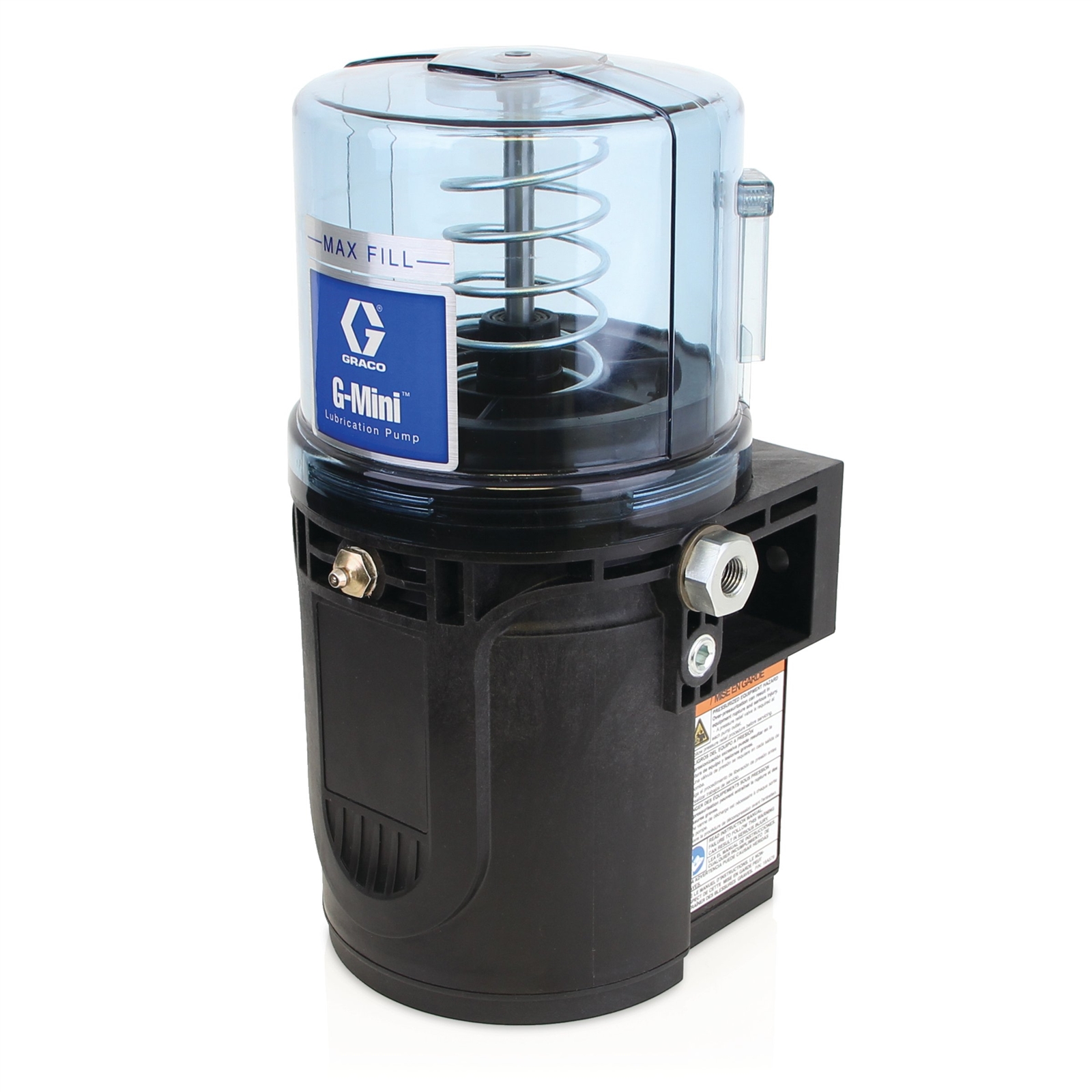

G-Mini® Grease Lubrication Pump with Controller, 12 VDC, 0.5 Liter

Description

G-Mini® Grease Lubrication Pump with Controller, 12 VDC, 0.5 Liter

Manufacturer	Graco
Primary UOM Code	EA
UPC Code	769946074963
Model	G-Mini
Application	Off-Road Equipment;On-Road Vehicles;Industrial;Wind Energy
Compatible material	Grease
Compatible metering device	Series Progressive
Control options	Internal Controller
Fluid outlet size	1/4 IN
Fluid outlet thread gender	Female
Fluid outlet thread type	NPSF
Ip rating	IP69K
Max flow rate	3 CI/MIN
Max nlgi grade	#2
Max working pressure	280 BAR / KPA / MPA / 4061 PSI
Minimum voltage	9 VDC
Number of pump elements	Up to 2
Overall depth	6.57 IN
Overall height	10.9
Overall width	6.97 IN
Power connection type	DIN
Product type	Electric Piston Pump
Reservoir size	0.5 L
Voltage	12 VDC
Weight	8.8 LB
Wetted material	Carbon Steel;Alloy Steel;Stainless Steel;Nitrile Rubber;Bronze;Nickel Plated Alnico;Chemically Lubricated Acetal;Aluminum;PTFE;Amorphous Polyamide;Nylon
Approvals	CE, EAC
Fluid inlet type	Zerk Fitting to Fill Reservoir
Max voltage	16 VDC
Number of sensor inputs	1
