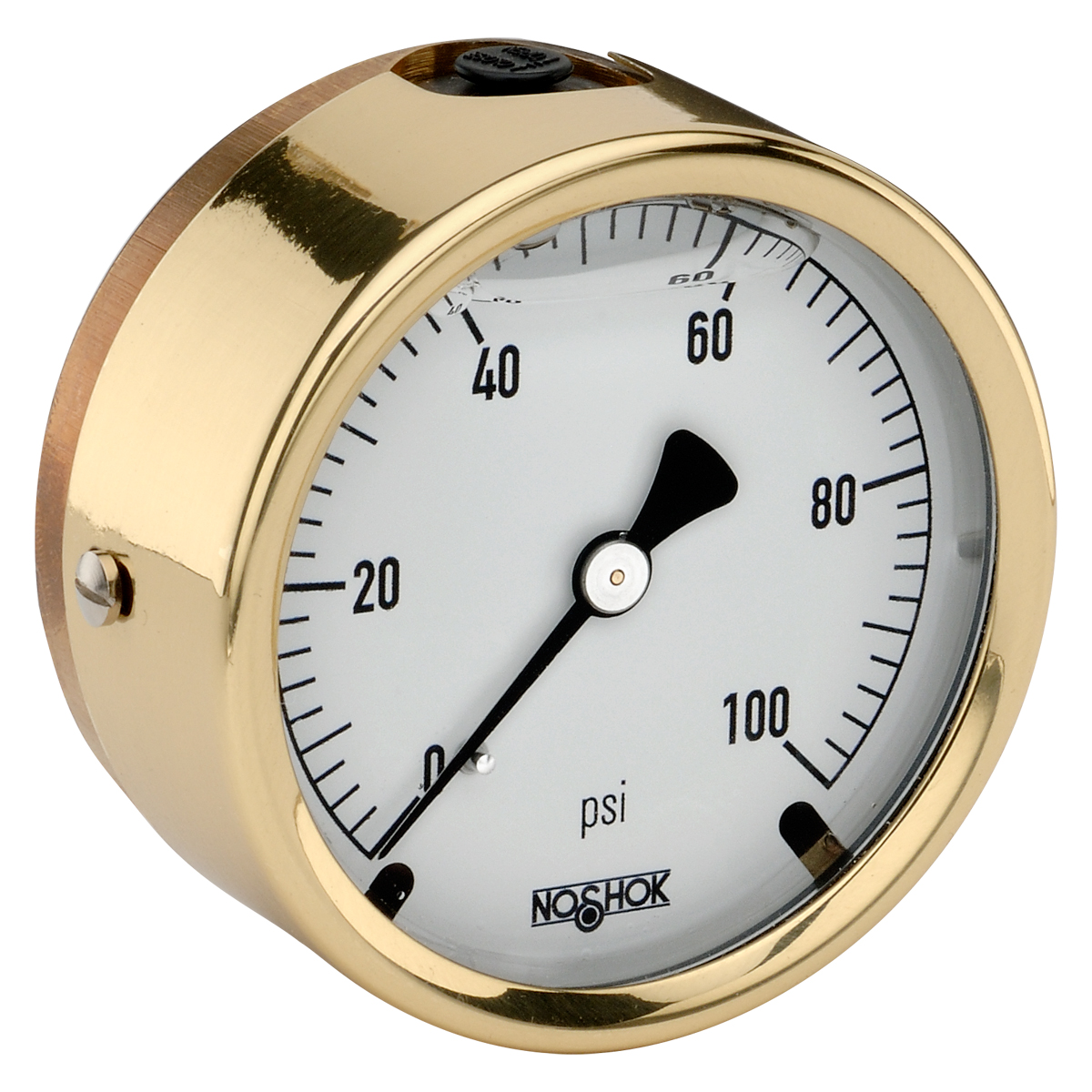

Pressure Gauge
High quality, heavy-duty liquid filled gauge
Vacuum and compound ranges through 0 psi to 15,000 psi
Die cast Brass case with natural Brass finish
Copper alloy or 316 Stainless Steel and Brass wetted parts
Cleaning for Oxygen Service (O2) is available only for dry or HL (Halocarbon) filled gauges
For gauges with MIP, GY40 fill is standard for liquid filled gauges
High quality, heavy-duty liquid filled gauge
Vacuum and compound ranges through 0 psi to 15,000 psi
Die cast Brass case with natural Brass finish
Copper alloy or 316 Stainless Steel and Brass wetted parts
Cleaning for Oxygen Service (O2) is available only for dry or HL (Halocarbon) filled gauges
For gauges with MIP, GY40 fill is standard for liquid filled gauges
| Manufacturer | Noshok |
|---|---|
| Pressure range | -30 inHg to 0 to 300 psi |
| Connection size | 1/4 in. NPT die-cast brass with the case. 7/16 in. – 20 SAE adjustable type straight thread with FKM O-Ring is also available as a stock option on many ranges (-4 SAE). |
| Material | Die Cast Brass (Natural Brass Finish) with Safety Relief Plug |
| Series | 310 Series |
| Gauge size | 2-1/2 in |
| Measuring element | Copper Alloy "C" Tube |
| Scale option | psi Single Scale |
