Graco 24Z028 - LUBEPRO A2800 PUMP,OIL,2.0L,N.C,LL

Graco 24Z028 – LUBEPRO A2800 PUMP,OIL,2.0L,N.C,LL

Part Number: 24Z028

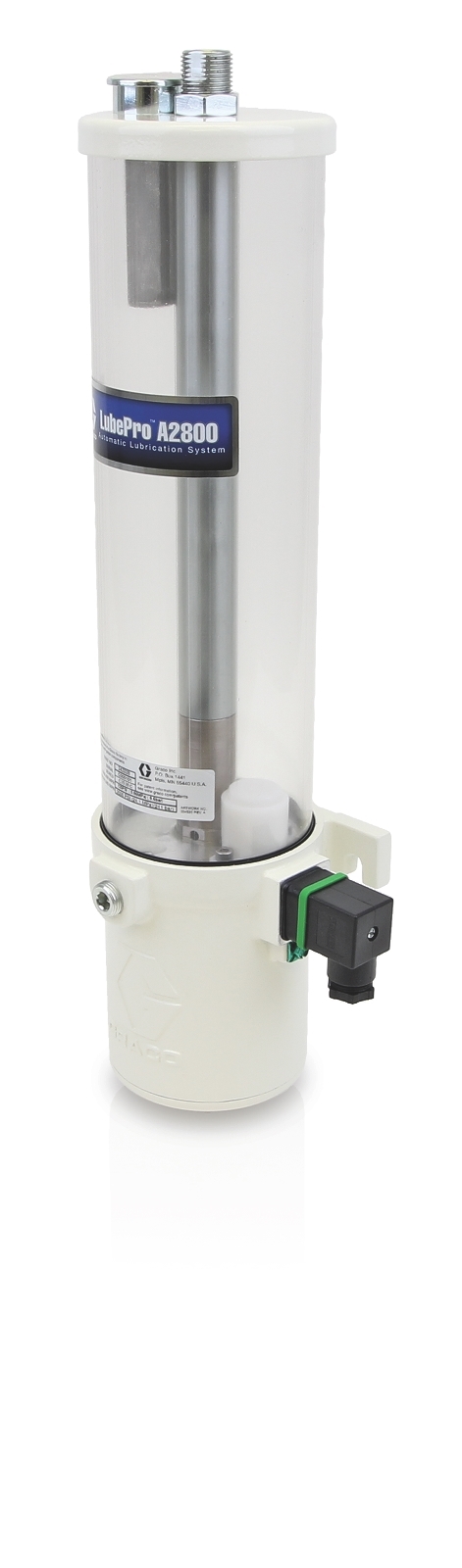

LubePro™ A2800 Vertical Oil Pumps, 2 liter Reservoir, Normally Closed, Low Level – NPT

Description

LubePro™ A2800 Vertical Oil Pumps, 2 liter Reservoir, Normally Closed, Low Level – NPT

Manufacturer	Graco
Primary application	Single Stroke Oil Pump for Automatic Lubrication
Primary UOM Code	EA
UPC Code	755652364795
Model	LubePro
Application	In-Plant Machinery
Compatible material	Oil
Maximum working pressure	241 BAR / 24100 KPA / 24.1 MPA / 3500 PSI
Product type	Pneumatic Piston Pump
Air inlet size	1/4 IN / 6.35 MM
Air inlet thread gender	Female
Air inlet thread type	NPT
Compatible metering device	Series Progressive;Single Line Parallel
Fluid outlet size	0.25 IN / 6.3500 MM
Fluid outlet thread type	NPT
Includes	Low Level
Maximum air inlet pressure	12.07 BAR / 1207 KPA / 175 PSI
Minimum cst grade	40 CST
Overall depth	5.1 IN / 13 CM / 130 MM
Overall height	19.83 IN / 50.4 CM / 504 MM
Overall width	17.3 CM / 6.8 IN / 173 MM
Power type	Pneumatic
Reservoir size	0.528 GAL / 2 L
Weight	4.80 KG / 10.58 LB
Wetted material	Zinc-Plated Steel;Casting Aluminum ZL101;Magnet;Plastic POM;Polycarbonate;Buna-N;PTFE;PEEK
