Description

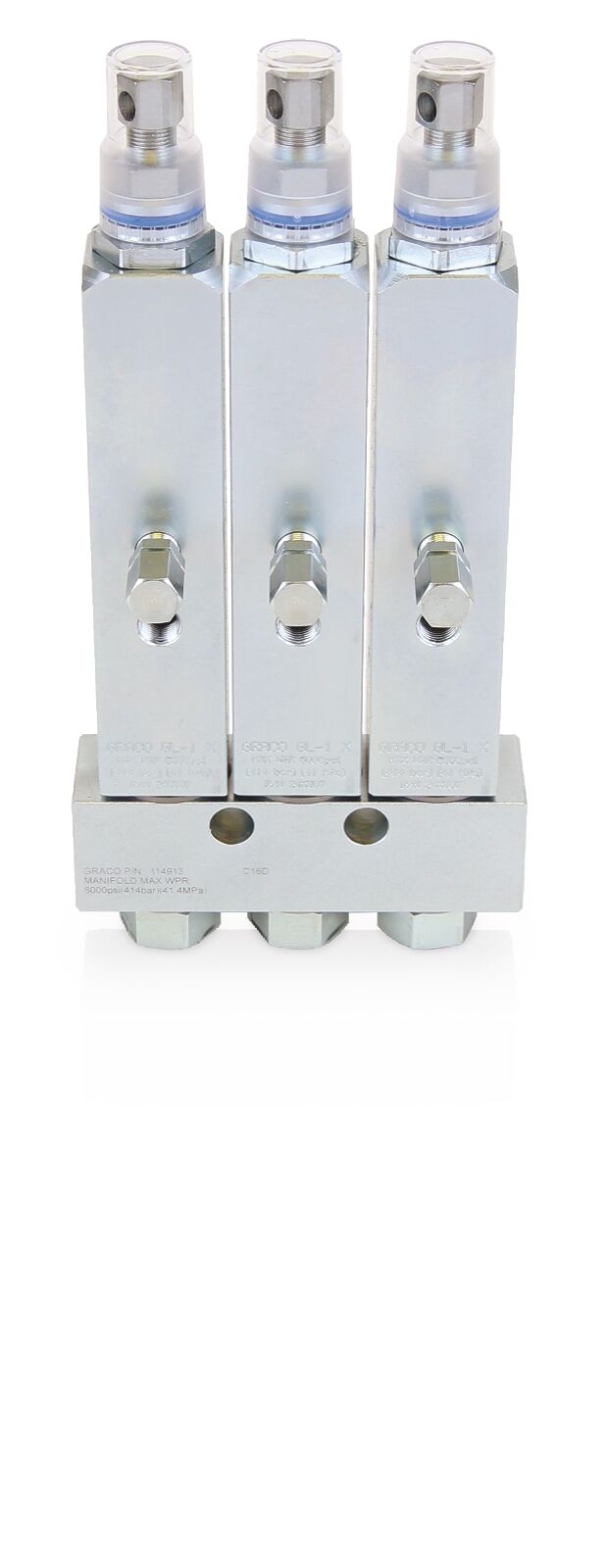

GL-1™ X Grease Injector, Three Point
Graco
24X803
GL-1 JECTOR,3 POINT
GL-1™ X Grease Injector, Three Point
Additional information
| Manufacturer | Graco |
|---|---|
| Primary application | High volume output at high pressures for the most demanding applications |
| Primary uom code | EA |
| Upc code | 7.55652E+11 |
| Model | GL-1 |
| Application | In-Plant Machinery;Off-Road Equipment |
| Compatible material | Grease |
| For use with | Single Line Parallel Automatic Lubrication Systems |
| Maximum working pressure | 414 BAR / 41400 KPA / 41.4 MPA / 6000 PSI |
| Product type | Grease Injector |
| Adjustable | Adjustable |
| Compatible metering device | Single Line Parallel |
| Cycle indicator | Visual |
| Dispense outlet size | 0.13 IN / 0.33 CM / 3.3 MM |
| Dispense outlet thread type | NPT |
| Inlet thread type | NPT |
| Maximum nlgi grade | #2 |
| Maximum output volume | 0.08 IN³ |
| Maximum reset pressure | 1000 PSI |
| Minimum operating pressure | 1850 PSI |
| Minimum output volume | 0.015 IN³ |
| Outlet thread type | NPT |
| Suggested operating pressure | 2500 PSI |
| Wetted material | Carbon Steel;Stainless Steel;Fluoroelastomer;UHMWPE |
