Description
Recommended for high-pressure hydraulic lines in longwall mining equipment and roof-support systems; petroleum-based or water emulsion fluids. Four spiral wire construction with static and dynamic pressure ratings listed on the hose.
Gates

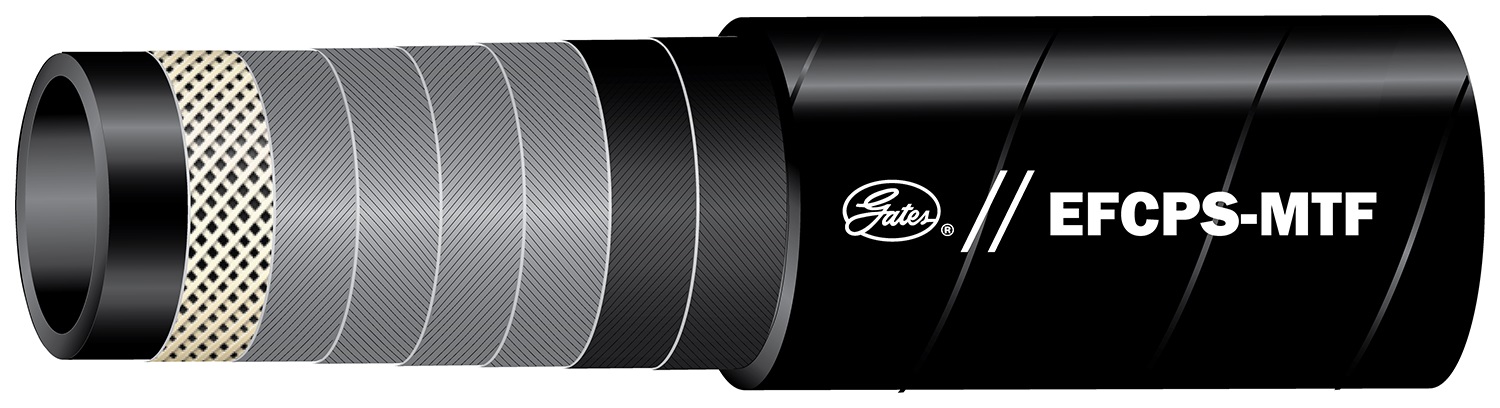

Gates | 46511710. 24EFCPS-MTF XCTN. EFCPS Mine Hose
46511710
Part Number: 46511710
Recommended for high-pressure hydraulic lines in longwall mining equipment and roof-support systems; petroleum-based or water emulsion fluids. Four spiral wire construction with static and dynamic pressure ratings listed on the hose.
Additional information
| Manufacturer | Gates |
|---|---|
| Dash size | 24 |
| Max temperature | +121 C / +250 F |
| Min order quantity | 50 |
| UOM | FT |
| Hose pressure | Constant Pressure-Extremely High |
| Reinforcement | 6-spiral, wire |
| Dynamic WP | 5000 psi / 344.7 bar |
| Min burst pressure | 20000 psi / 1379 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 1.5 in / 38.1 mm |
| Hose OD | 2.26 in / 57.4 mm |
| Tube material | Nitrile, Oil Resistant |
| Cover material | MegaTuff |
| Cover type | MegaTuff |
| Cover color | Black |
| Length | 50 ft / 15 m |
| Min bend radius | 20 in / 381 mm |
| Meets MSHA 2G | YES |
| Second Name | 46511710 |
| Product line | EFCPS Mine Hose |
