Graco 246775 - FIREBALL 225 PUMP,3:1,(UNIVERSAL)

Graco 246775 – FIREBALL 225 PUMP,3:1,(UNIVERSAL)

Part Number: 246775

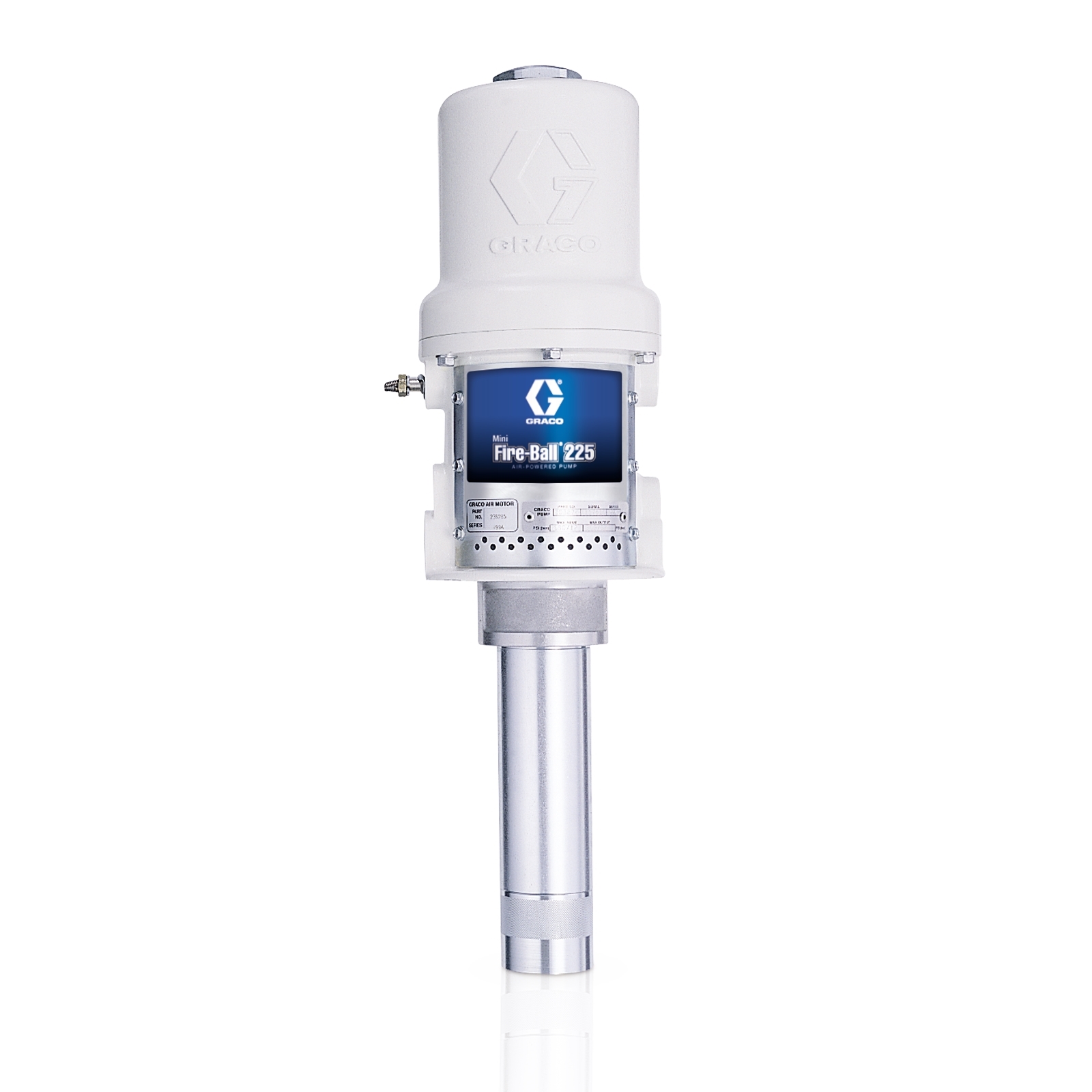

Mini Fire-Ball® 225 3:1 Universal Size Oil Pump

Description

Mini Fire-Ball® 225 3:1 Universal Size Oil Pump

Manufacturer	Graco
Primary application	The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications.
Primary UOM Code	EA
UPC Code	633955007918
Model	Mini Fire-Ball
Application	Industrial
Compatible material	Oil
For use with	Petroleum- and synthetic-based oils (motor, gear and ATF)
Air inlet size	3/8 IN /9.525 MM
Air inlet thread gender	Female
Air inlet thread type	NPT
Air motor effective diameter	2.25 IN
Country code of origin	US
Division code	LED
Fluid inlet size	1-1/2 IN / 38.1 MM
Fluid inlet thread gender	Female
Fluid inlet thread type	NPT
Fluid outlet size	1/2 IN / 12.7 MM
Fluid outlet thread gender	Female
Fluid outlet thread type	NPT
Manual id	309868
Max air consumption	20 SCFM
Max air inlet pressure	12.41 BAR / 1241 KPA / 180 PSI
Max continuous cycle rate	100 CPM
Max working pressure	37 BAR / 3700 KPA / 3.7 MPA / 540 PSI
Power type	Pneumatic
Product type	Pneumatic Piston Pump
Product Page	https://www.graco.com/us/en/vehicle-service/product/246775-mini-fire-ball-225.html
Pump ratio	3:01
Schedule b	8413190000
Sound power level	85.6 DB(A)
Sound pressure level	77.8 DB(A)
Taxonomy description	Piston Pumps
Unit height	10.8 IN
Unit length	28.8 IN
Unit volume	1.73 FT3
Unit weight	16.5 LBS
Unit width	9.6 IN
Weight	0.7264 KG / 16 LB
Wetted material	Steel;Polyurethane;Aluminum;Buna-N
Marketing owner	Salminen, Tyler A (Tyler)
Cycles per gallon	43.5
