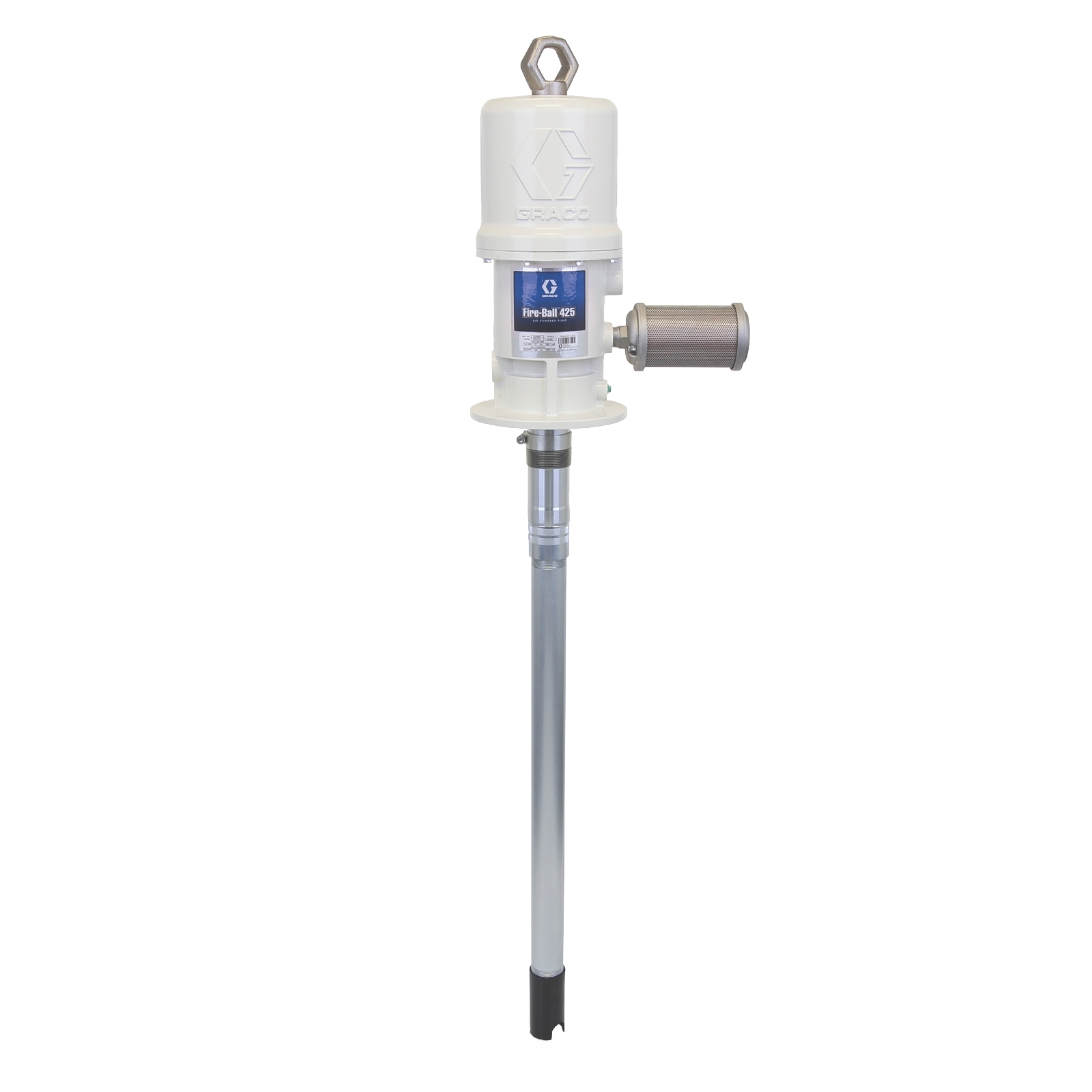

Graco 222095 - FIREBALL 425 PUMP,10:1,55 GL

Graco 222095 – FIREBALL 425 PUMP,10:1,55 GL

Part Number: 222095

Fire-Ball® 425 Series 10:1 55 Gallon (200 Liter) Drum Size Oil Pump – Bung Mount

Description

Fire-Ball® 425 Series 10:1 55 Gallon (200 Liter) Drum Size Oil Pump – Bung Mount

Manufacturer	Graco
Primary application
Primary UOM Code	EA
UPC Code	633955582002
Model	Fire-Ball
Application	Industrial
Compatible material	Oil
For use with	Petroleum- and synthetic-based oils (motor, gear and ATF)
Air inlet size	0.5 IN /12.7 MM
Air inlet thread gender	Female
Air inlet thread type	NPT
Air motor effective diameter	4.25 IN
Country code of origin	US
Division code	LED
Fluid inlet size	1-1/2 IN / 38.1 MM
Fluid inlet thread gender	Female
Fluid inlet thread type	NPT
Fluid outlet size	3/4 IN / 19.05 MM
Fluid outlet thread gender	Female
Fluid outlet thread type	NPT
Manual id	308655
Max air inlet pressure	12.41 BAR / 1241 KPA / 180 PSI
Max continuous cycle rate	66 CPM
Max intermittent cycle rate	66 CPM
Max working pressure	124 BAR / 12400 KPA / 12.4 MPA / 1800 PSI
Power type	Pneumatic
Product type	Pneumatic Piston Pump
Product Page	https://www.graco.com/us/en/vehicle-service/product/222095-fire-ball-425.html
Pump ratio	10:01
Schedule b	8413190000
Sound pressure level	78 DB(A)
Taxonomy description	Piston Pumps
Unit height	11.5 IN
Unit length	63.5 IN
Unit volume	4.225984 FT3
Unit weight	38 LBS
Unit width	10 IN
Weight	1.3030 KG / 28.7 LB
Wetted material	Aluminum;Steel;Polyurethane;Nitrile
Marketing owner	Norman, Shane A (Shane)
Cycles per gallon	19.6
