Graco 222069 - FIREBALL 300 LUBRICATOR,CHASSIS 50:1

Graco 222069 – FIREBALL 300 LUBRICATOR,CHASSIS 50:1

Part Number: 222069

Fire-Ball® 300 Series 50:1 25 to 50 lb. (11.3 to 23 kg) Grease Pump – Portable Pail Dispenser Package

Description

Fire-Ball® 300 Series 50:1 25 to 50 lb. (11.3 to 23 kg) Grease Pump – Portable Pail Dispenser Package

Manufacturer	Graco
Primary application	Install the Fire-Ball 300 50:1 in grease dispense applications.
Primary UOM Code	EA
UPC Code	633955460485
Model	Fire-Ball
Application	Industrial
Compatible material	Grease
Air inlet size	3/8 IN
Air inlet thread gender	Female
Air inlet thread type	NPT
Country code of origin	US
Division code	LED
Fluid inlet thread gender	Female
Fluid inlet thread type	NPT
Fluid inlet type	Slotted
Fluid outlet size	1/4 IN / 0.635 CM / 6.35 MM
Fluid outlet thread gender	Female
Fluid outlet thread type	NPT

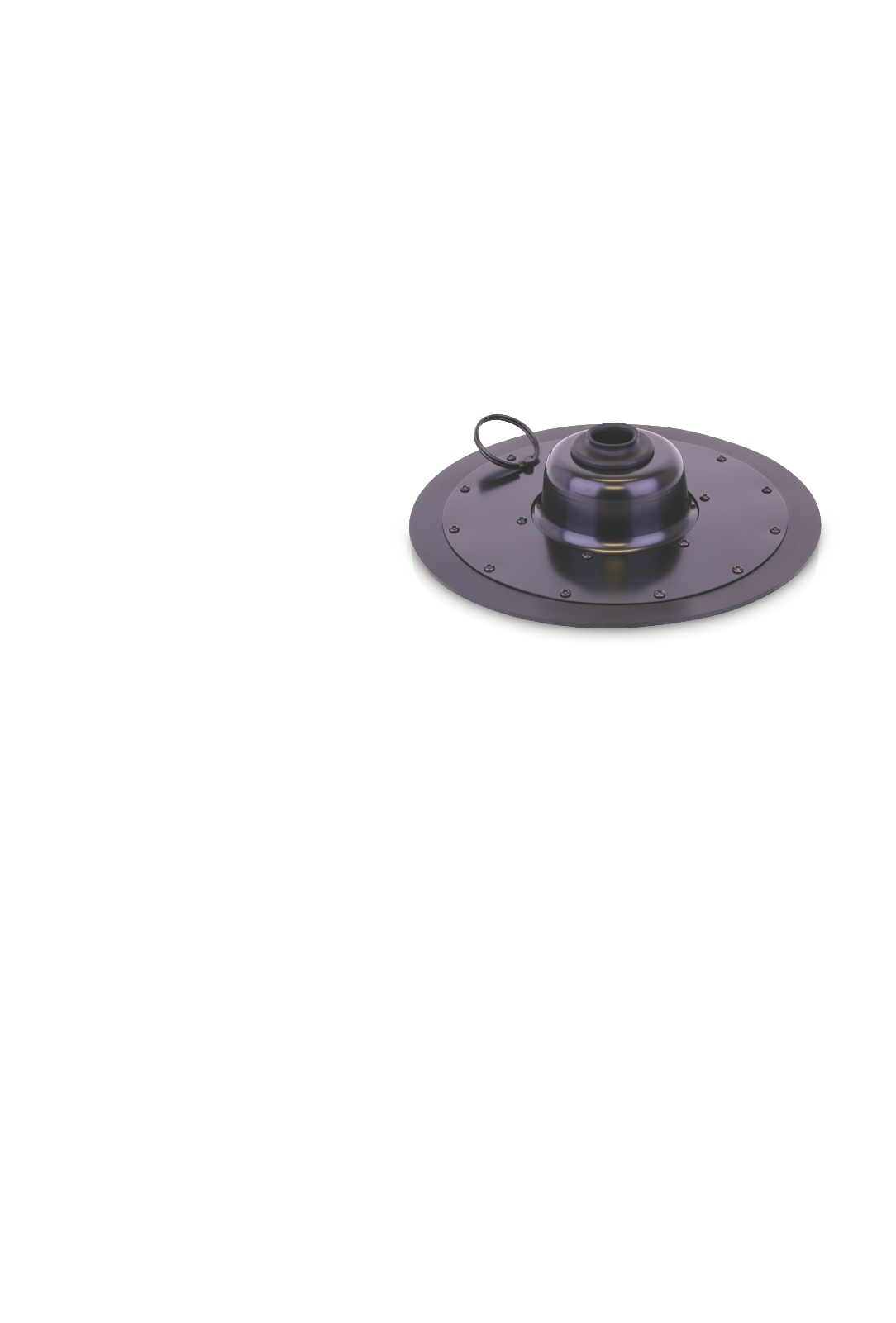

Includes	Fireball 300 50:1 Pump;Dispense Kit;Cover;Follow Plate
Manual id	307878;306708;308883;309032
Max air working pressure	180 PSI
Max working pressure	350 BAR / 35000 KPA / 35 MPA / 5000 PSI
Motor type	Pneumatic
Power type	Pneumatic
Product type	Piston Pump Package
Product Page	https://www.graco.com/us/en/vehicle-service/product/222069-fire-ball-300.html
Pump ratio	50:01:00
Pump weight	22 LB
Schedule b	8413190000
Taxonomy description	Piston Pump Packages
Unit height	1.2 IN
Unit length	1.2 IN
Unit volume	.001 FT3
Unit weight	32.99 LBS
Unit width	1.2 IN
Wetted material	CS;Delrin;Buna-N;Polyurethane
