Part Number: 2100-FFC

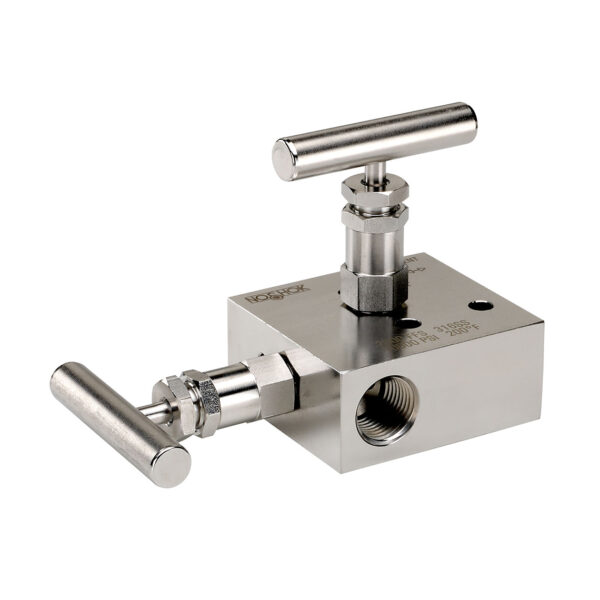

Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right

SKU: 2100-FFC Category: 2000/2100 Series Static Pressure Block and Bleed 2 Manifold Valves with Hard and Soft Seat

Description
Additional information

Description

Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right

Additional information

Manufacturer	Noshok
Connection Type	National Pipe Thread (NPT) Standard or Flange
Series	2-Valve
Seat	Soft Seat
Valve type	Female-Female
Valve material	Steel
Body material	Zinc-nickel plated steel, electropolished 316 Stainless Steel
Connection size	1/2 in
Pressure rating at 200F	6,000 psi
Orifice size	0.187 in
Product line	2000/2100 Series Static Pressure Block and Bleed 2 Manifold Valves with Hard and Soft Seat
