Part Number: 46510375

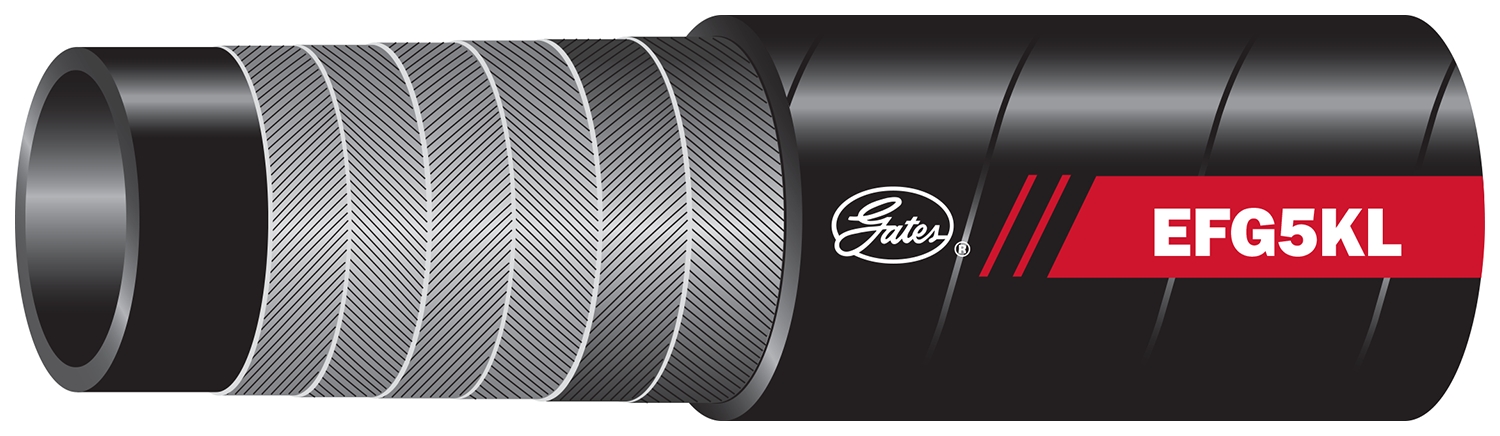

EFG5K hose is recommended for extremely high pressure and high impulse hydraulic applications. EFG5K is designed to meet or exceed all requirements of ISO 3862 R13 specifications and performance requirements of EN 856 4SP (-10 to -32) and EN 856 4SH (-20 to -32). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil, as well as standard petroleum-based fluids.
EFG5K hose is recommended for extremely high pressure and high impulse hydraulic applications. EFG5K is designed to meet or exceed all requirements of ISO 3862 R13 specifications and performance requirements of EN 856 4SP (-10 to -32) and EN 856 4SH (-20 to -32). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil, as well as standard petroleum-based fluids.
| Manufacturer | Gates |
|---|---|
| Dash size | 20 |
| Max temperature | +121 C / +250 F |
| Min order quantity | 50 |
| UOM | FT |
| Hose pressure | Constant Pressure-Extremely High |
| Reinforcement | 6-spiral, wire |
| Dynamic WP | 5000 psi / 344.7 bar |
| Min burst pressure | 20000 psi / 1379 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 1.25 in / 31.8 mm |
| Hose OD | 1.97 in / 50 mm |
| Tube material | Nitrile – Type C, Oil Resistant |
| Cover material | XtraTuff |
| Cover type | XtraTuff |
| Cover color | Black |
| Length | 50 ft / 15 m |
| Min bend radius | 8.2 in / 228.6 mm |
| SAE specs & DOT | 100R13 |
| Meets MSHA 2G | YES |
| Second Name | 46510375 |
| Product line | EFG5K Hydraulic Hose |
