Noshok

200002-MMS

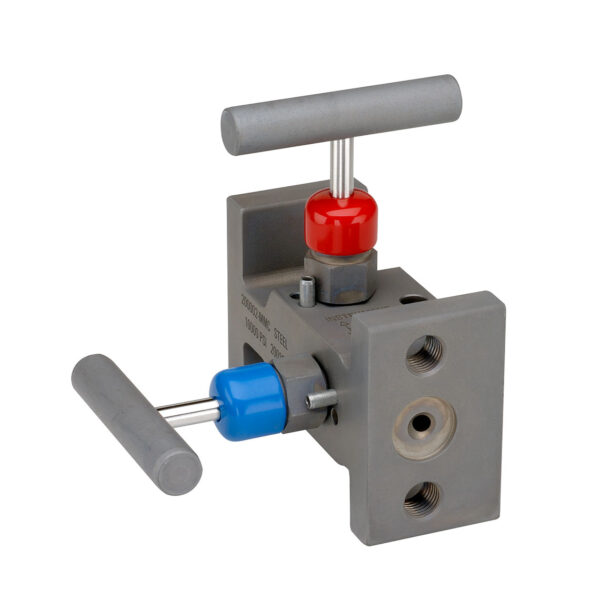

Manifold Valve

Hard Seat, Flange x Flange 316 Stainless Steel, 0.187 in” Orifice, 2 Manifold Valve with 1/4″ National Pipe Thread (NPT) Vent
Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right

SKU: 200002-MMS Categories: ,

Description

Hard Seat, Flange x Flange 316 Stainless Steel, 0.187 in” Orifice, 2 Manifold Valve with 1/4″ National Pipe Thread (NPT) Vent
Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right

Additional information

Manufacturer

Noshok

Seat

Hard Seat

Valve type

Flange-Flange

Valve material

Stainless Steel

Body material

Zinc-nickel plated steel, electropolished 316 Stainless Steel

Pressure rating at 200F

10,000 psi

Orifice size

0.187 in
