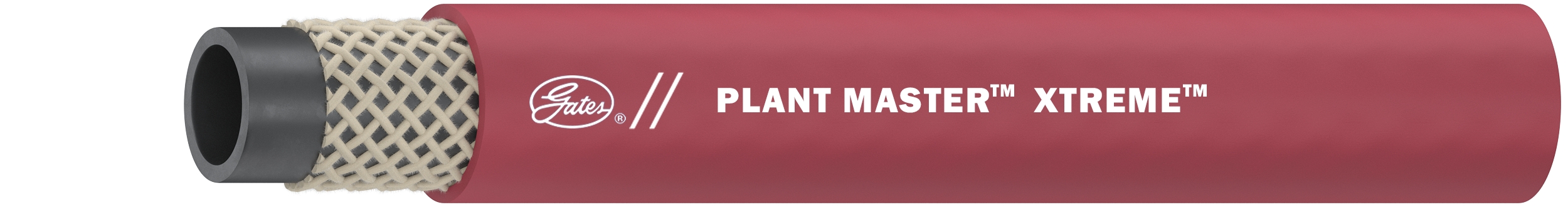

Gates | 32192914. 1XRL PLANT XTRM 325 BRAID RED. Plant Master™ XTreme 325 Braid
Gates

Gates | 32192914. 1XRL PLANT XTRM 325 BRAID RED. Plant Master™ XTreme 325 Braid

32192914

Part Number: 32192914

RECOMMENDED FOR: Applications requiring a premium grade braided hose, with excellent flexibility and maximum resistance to air, water, petroleum oils, gasoline, kerosene and fuel oil (to +120°F) and lubricating oils (to +212°F).

Add to quote
SKU: 1XRL PLANT XTRM 325 BRAID RED Category:

Description

RECOMMENDED FOR: Applications requiring a premium grade braided hose, with excellent flexibility and maximum resistance to air, water, petroleum oils, gasoline, kerosene and fuel oil (to +120°F) and lubricating oils (to +212°F).

Additional information

Manufacturer

Gates
Cover color

Red
Cover material

Modified Nitrile – Type C2
Length

525 ft / 160 m
Max temperature

100 C / 212 F
Min bend radius

8 in / 203 mm
Min order quantity

525
Min temperature

-40 C / -40 F
Reinforcement

Braided, synthetic textile
Tube material

Nitrile – Type C
UOM

FT
Working pressure

325 psi / 22.4 bar
Hose ID

0.303 in / 12.26 mm
Hose OD

0.347 in / 23.262 mm
Tube characteristics

High oil resistance
Vacuum (Hg)

10 in / 254 mm
Cover standard

ARPM Class B
Tube standard

ARPM Class A
Second Name

32192914
Product line

Plant Master™ XTreme 325 Braid
