Description
RECOMMENDED FOR: Cold and hot water up to +212°F (+100°C) where steam is injected into the water. Used for paper mill, food handling or processing plant washdown service requiring hose with a non–marking cover.
Gates

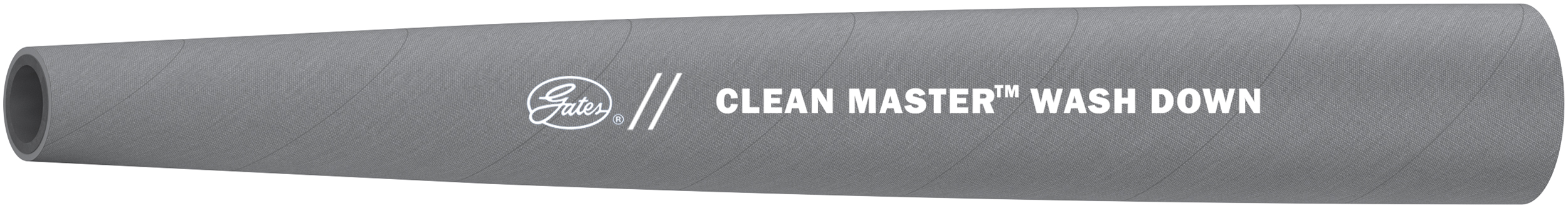

Gates | 32130416. 1X50 CLEAN WASHDOWN W/O NOZZLE. Clean Master™ Washdown
32130416
Part Number: 32130416
RECOMMENDED FOR: Cold and hot water up to +212°F (+100°C) where steam is injected into the water. Used for paper mill, food handling or processing plant washdown service requiring hose with a non–marking cover.
Additional information
| Manufacturer | Gates |
|---|---|
| Cover color | White |
| Cover material | EPDM – Type P |
| Length | 50 ft / 15.2 m |
| Max temperature | 100 C / 212 F |
| Min bend radius | 8 in / 203 mm |
| Min order quantity | 4200 |
| Min temperature | -40 C / -40 F |
| Reinforcement | Synthetic textile |
| Tube material | EPDM – Type P |
| UOM | FT |
| Working pressure | 200 psi / 13.8 bar |
| Hose ID | 0.1568 in / 12.1525 mm |
| Hose OD | 0.1612 in / 23.1527 mm |
| Cover characteristic | Perforated |
| Vacuum (Hg) | 15 in / 381 mm |
| Second Name | 32130416 |
| Product line | Clean Master™ Washdown |
