Part Number: 31320803
RECOMMENDED FOR: Transfer of potable water, non–potable water or liquids not containing oils or chemicals and applications which require a lightweight, flexible hose with a tight bend radius and a high rated working pressure in long continuous lengths.
RECOMMENDED FOR: Transfer of potable water, non–potable water or liquids not containing oils or chemicals and applications which require a lightweight, flexible hose with a tight bend radius and a high rated working pressure in long continuous lengths.
| Manufacturer | Gates |
|---|---|
| Cover color | Tan |
| Cover material | EPDM – Type P |
| Length | 200 ft / 61 m |
| Max temperature | 66 C / 150 F |
| Min bend radius | 10 in / 254 mm |
| Min order quantity | 400 |
| Min temperature | -40 C / -40 F |
| Reinforcement | Multi-ply, synthetic textile, static filament |
| Tube material | Natural Rubber – Type D2 |
| UOM | FT |
| Working pressure | 300 psi / 20.7 bar |
| Hose ID | 0.1246 in / 12.1203 mm |
| Hose OD | 0.129 in / 23.1205 mm |
| Cover characteristic | Smooth |
| Vacuum (Hg) | 15 in / 381 mm |
| Tube standard | Meets applicable FDA requirements |
| Second Name | 31320803 |

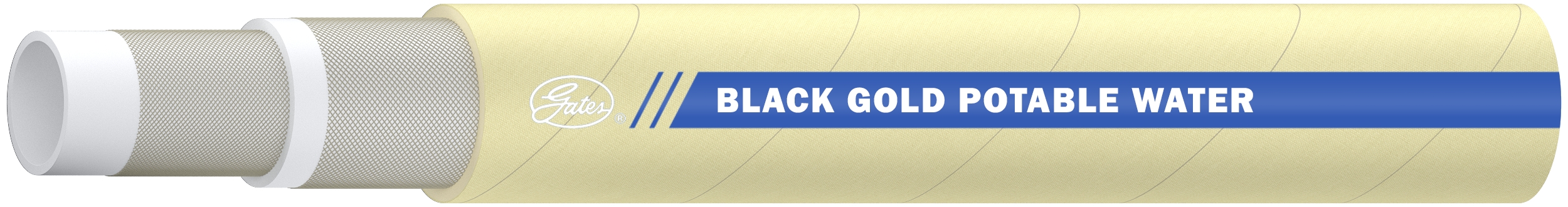

| Product line | Black Gold™ Potable Water |
