Gates | 46511631. 16G8K XCTN. G8K Hydraulic Hose

46511631

Part Number: 46511631

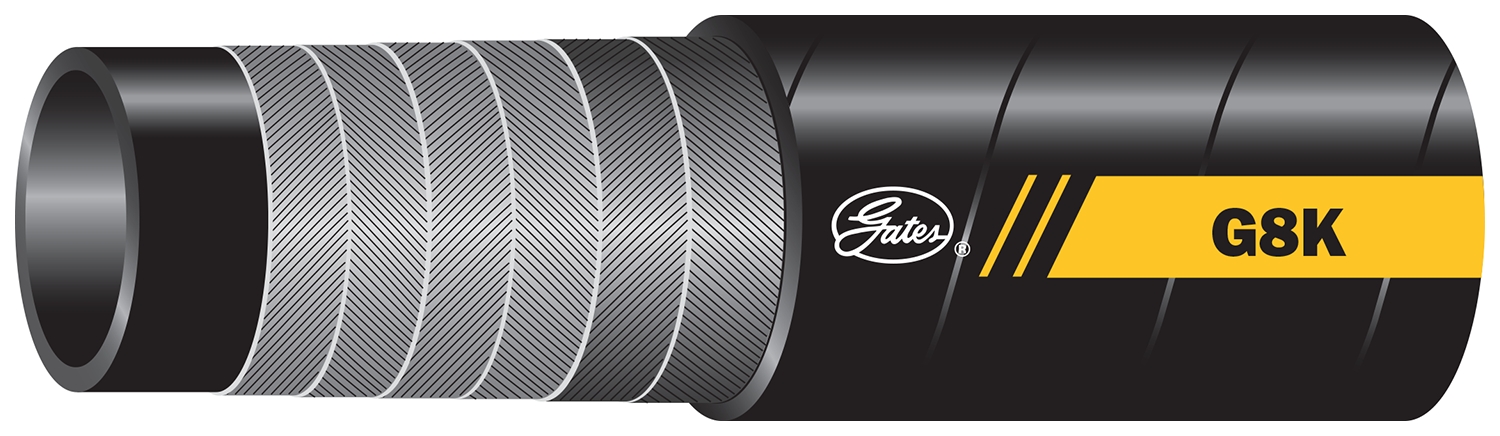

The G8K Spiral Wire Hose is recommended for ultra high-pressure, high-impulse applications such as hydrostatic transmissions. It is also for use in the construction, agriculture, forestry, underground or open pit mining, and other industries on applications where extremely high pressure capability is required. G8K hoses offer industry-leading bend radius capability, which leads to ease of routing and installation, longer hose life in flexing applications, and fewer bent tube fitting requirements.

SKU: 16G8K XCTN Category:

Description

The G8K Spiral Wire Hose is recommended for ultra high-pressure, high-impulse applications such as hydrostatic transmissions. It is also for use in the construction, agriculture, forestry, underground or open pit mining, and other industries on applications where extremely high pressure capability is required. G8K hoses offer industry-leading bend radius capability, which leads to ease of routing and installation, longer hose life in flexing applications, and fewer bent tube fitting requirements.

Additional information

Manufacturer

Gates

Dash size

16

Max temperature

+121 C / +250 F

Min order quantity

100

UOM

FT

Hose pressure

Constant Pressure-Ultra High

Reinforcement

6-spiral, wire

Dynamic WP

8000 psi / 551.6 bar

Min burst pressure

32000 psi / 2206.3 bar

Minimum temperature

-40 C / -40 F

Hose ID

1 in / 25.4 mm

Hose OD

1.66 in / 42.2 mm

Tube material

Polychloroprene (Neoprene) – Type A, Oil Resistant

Cover material

Polychloroprene (Neoprene) – Type A

Cover type

Standard

Cover color

Black

Length

100 ft / 30 m

Min bend radius

12 in / 119.4 mm

Meets MSHA 2G

YES

Second Name

46511631

Product line

G8K Hydraulic Hose
