Description
Gates GL low pressure couplings has been specifically designed with a pre-crimped soft shell to work with lower pressure hydraulic suction lines and low pressure return line hose. Not to be used as live swivel. Special GL dies required.
Gates

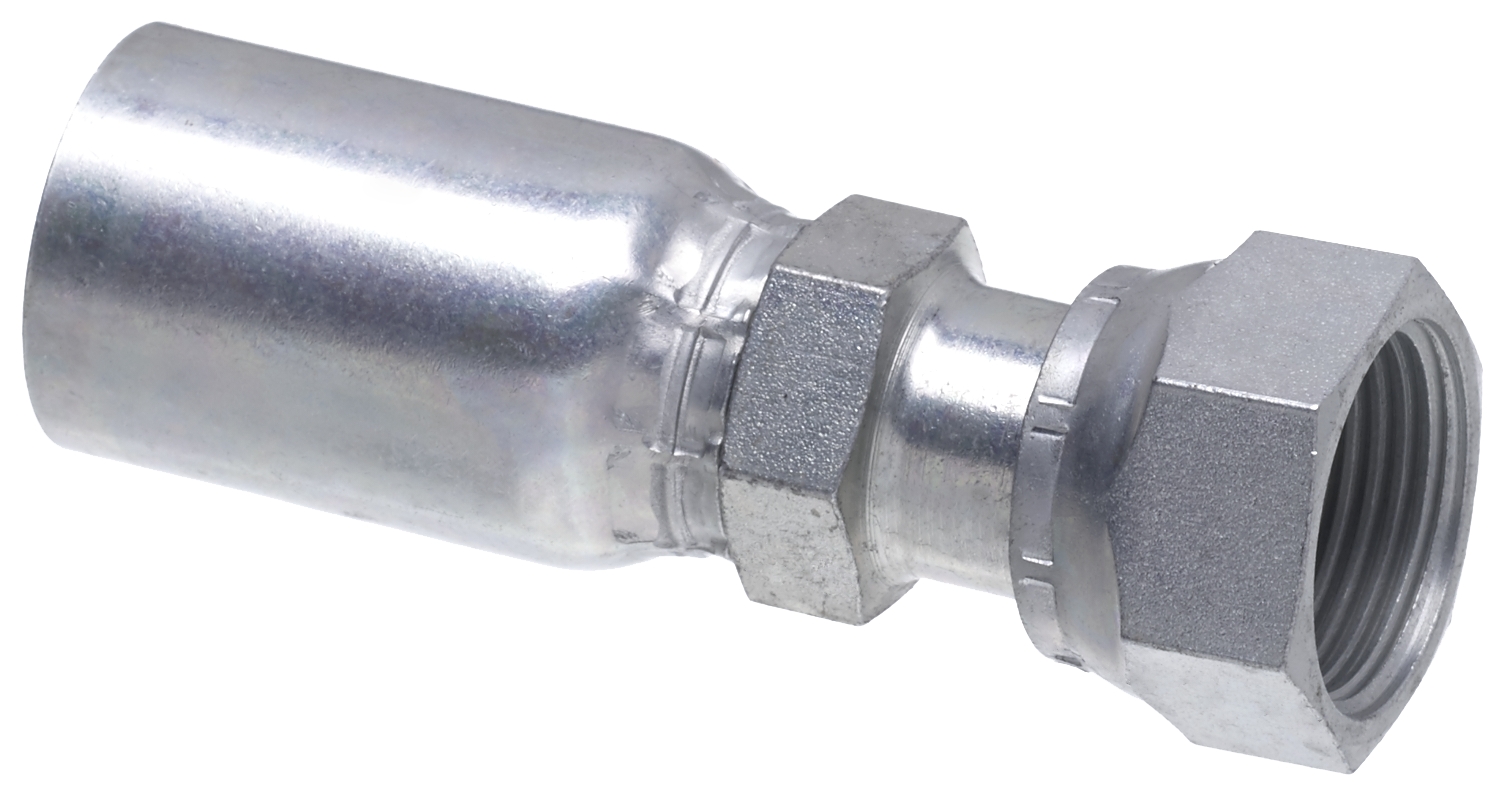

12GL-12FFORX
734800305
GL Couplings
Gates GL low pressure couplings has been specifically designed with a pre-crimped soft shell to work with lower pressure hydraulic suction lines and low pressure return line hose. Not to be used as live swivel. Special GL dies required.
Additional information
| Manufacturer | Gates |
|---|---|
| Coating | TuffCoat™ |
| Configuration | Straight |
| End size | 12 |
| End type | FFORX |
| Fitting type | O-Ring Face Seal |
| Hose recommend | GMV, MegaTech G5TB, MegaTech 500 |
| Material | Steel |
| Thread size | 1 3/16-12 |
| UOM | EA |
| Angle | Not Applicable |
| Swivel | YES |
| Hose dash size | 12 |
| Cut off length | 1.772 in / 45 mm |
| SAE/ISO/DOT specifications | J1453 O-Ring Face Seal |
| Second Name | 734800305 |
