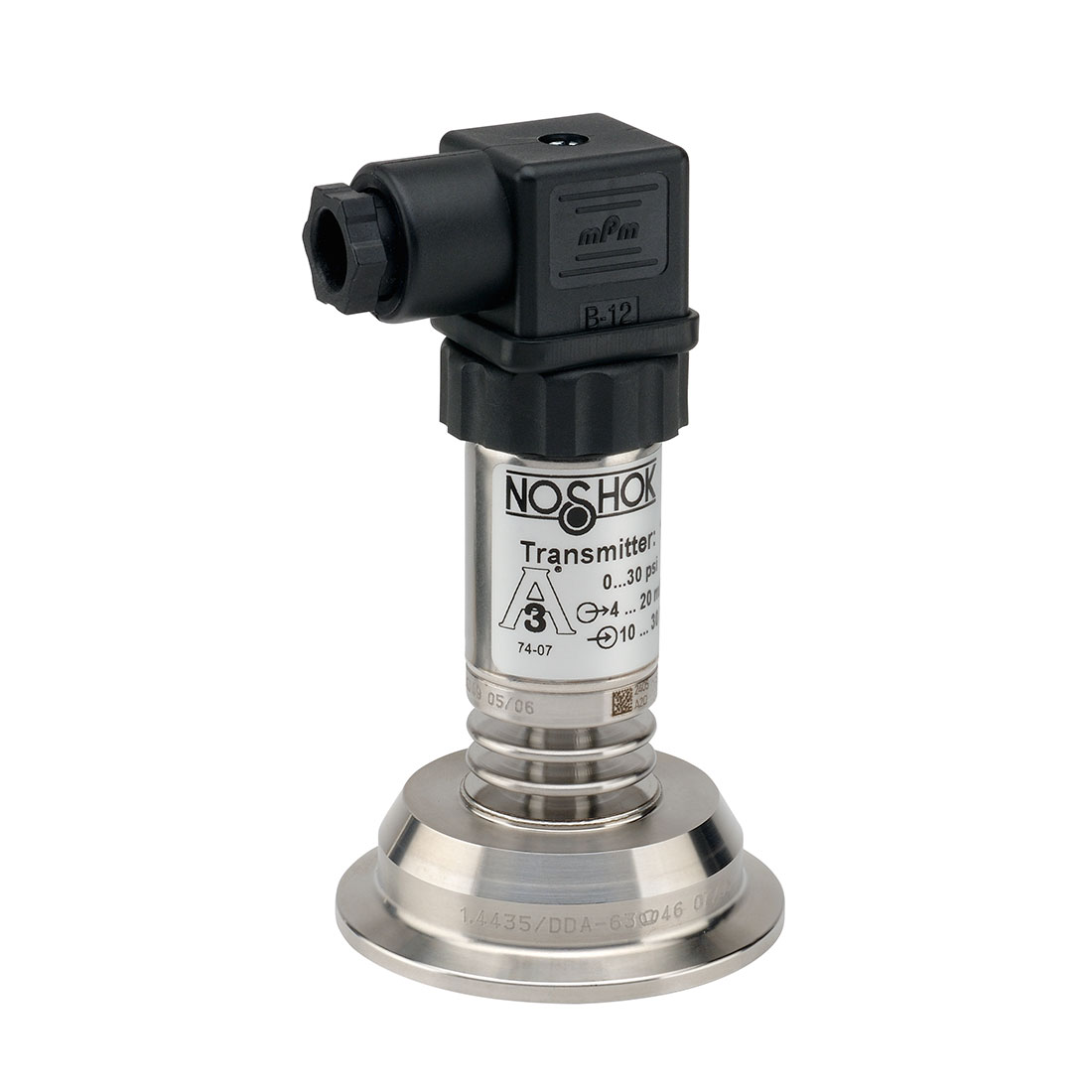

Part Number: 110-12-4-615-1-58-1-8

Current and voltage outputs available
316 Stainless Steel wetted parts
Can be cleaned-in-place (CIP) or steamed-in-place (SIP)
Meets 3A requirements for the food and beverage, dairy, pharmaceutical and biotechnology industries
CE compliant to suppress RFI, EMI and ESD

SKU: 110-12-4-615-1-58-1-8 Category: Pressure Transducers and Transmitters

Description
Additional information

Description

Current and voltage outputs available
316 Stainless Steel wetted parts
Can be cleaned-in-place (CIP) or steamed-in-place (SIP)
Meets 3A requirements for the food and beverage, dairy, pharmaceutical and biotechnology industries
CE compliant to suppress RFI, EMI and ESD

Additional information

Manufacturer	Noshok
Housing Material	316 Stainless Steel
Output Signal	4 mA to 20 mA, 2-Wire, 0 Vdc to 5 Vdc 3-Wire, 1 Vdc to 5 Vdc 3-Wire, 1 Vdc to 6 Vdc 3-Wire, 0 Vdc to 10 Vdc, 3-Wire, 1 Vdc to 11 Vdc 3-Wire
Power requirement	10 Vdc to 30 Vdc (4 mA to 20 mA, 2-Wire, 0 Vdc to 5 Vdc, 3-Wire, 1 Vdc to 5 Vdc, 3-Wire, 1 Vdc to 6 Vdc, 3-Wire) 14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-Wire, Vdc to 11 Vdc, 3-Wire)
Adjustment	±10% full scale for zero and span
Ambient temperature range	-40 to 176 ºF
Connection material	316 Stainless Steel
Product line	11 Series Sanitary Clamp Pressure Transmitters
