Part Number: 36580028

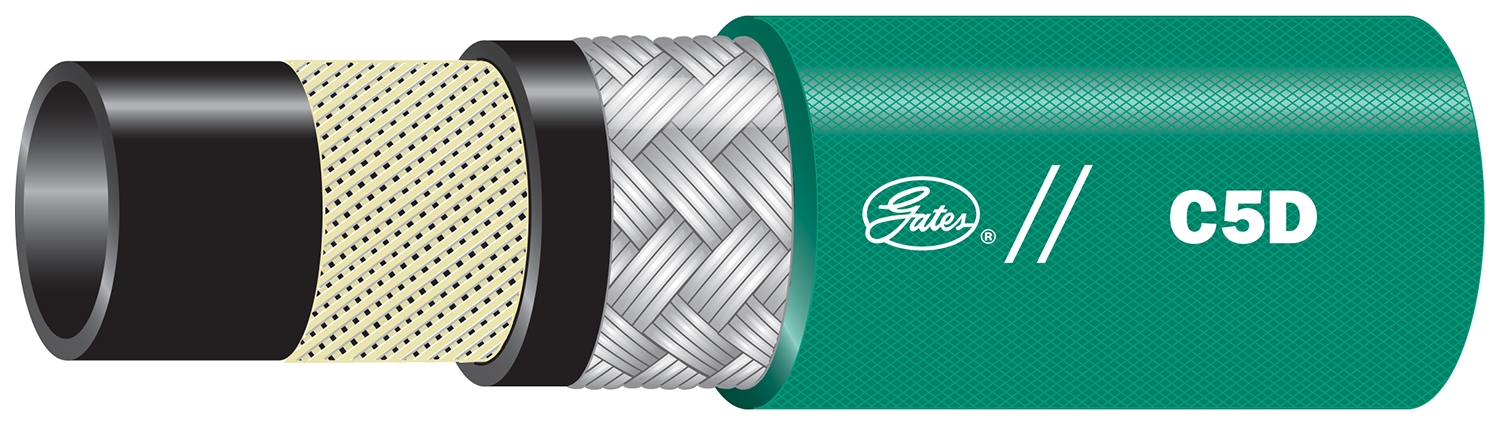

C5D high-temp hose is recommended for use with petroleum-based or phosphate ester fluids; diesel fuels and filtration lines, transmission coolant lines, hot lube oil lines, power steering (CAUTION: Intended for heavy-duty commercial vehicle use only), gasoline, turbocharger oil supplies, tilt cab cylinder and air brakes. Not approved for biodiesel above B5.
C5D high-temp hose is recommended for use with petroleum-based or phosphate ester fluids; diesel fuels and filtration lines, transmission coolant lines, hot lube oil lines, power steering (CAUTION: Intended for heavy-duty commercial vehicle use only), gasoline, turbocharger oil supplies, tilt cab cylinder and air brakes. Not approved for biodiesel above B5.
| Manufacturer | Gates |
|---|---|
| Dash size | 10 |
| Max temperature | +149 C / +300 F |
| Min order quantity | 275 |
| UOM | FT |
| Hose pressure | Variable Pressure-Medium |
| Reinforcement | 2-braid, texile, wire |
| Dynamic WP | 1250 psi / 86.2 bar |
| Min burst pressure | 5000 psi / 344.7 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 0.5 in / 12.7 mm |
| Hose OD | 0.92 in / 23.4 mm |
| Tube material | CPE – Type J, Heat, Oil Resistant |
| Cover material | Polyester Braid Impregnated w/ Synthetic Rubber |
| Cover type | Standard |
| Cover color | Green |
| Length | 275 ft / 84 m |
| Min bend radius | 2 in / 50.8 mm |
| SAE specs & DOT | J1402 Type AII, DOT FMVSS 106-74 Type AII |
| Second Name | 36580028 |
| Product line | C5D High-Temp Multi-Fluid Hydraulic Hose |
