Description
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Gates
10C5-10RMFA
723604905

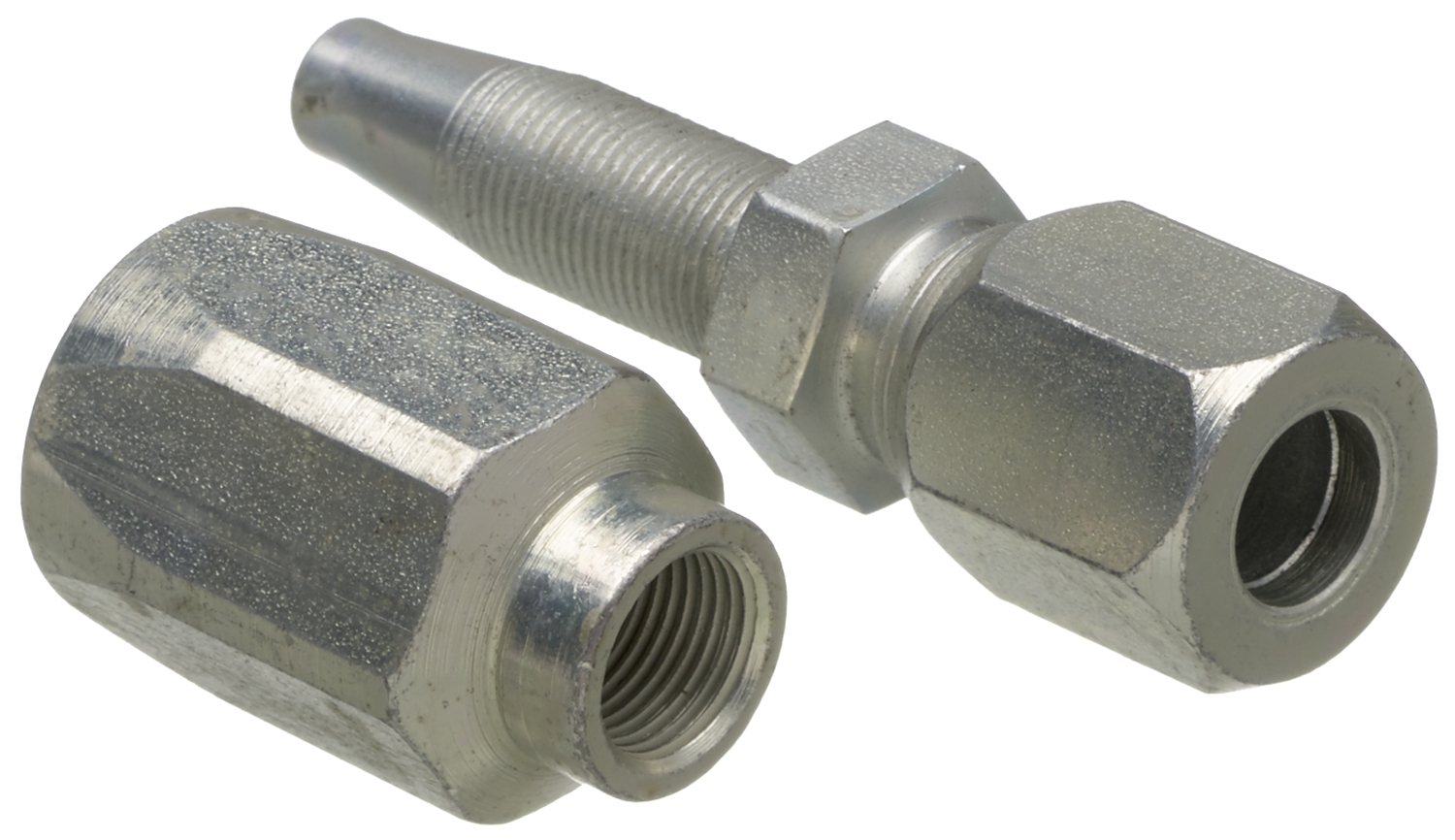

Field Attachable C5 Couplings
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Additional information
| Manufacturer | Gates |
|---|---|
| Angle | Not Applicable |
| Coating | Zinc-plated |
| Configuration | Straight |
| Cut off length | 1.48 in / 37.59 mm |
| End size | 10 |
| End type | MFA |
| Fitting type | Flareless Tube |
| Hose dash size | 10 |
| Hose recommend | C5C, C5D, C5CHX, C5M |
| Material | Steel |
| Swivel | NO |
| Thread size | 7/8-14 |
| UOM | EA |
| SAE/ISO/DOT specifications | DOT FMVSS 106-74 Type AII |
| Second Name | 723604905 |
