Description
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Gates
10C5-10RFJSX90 XBULK
72352013

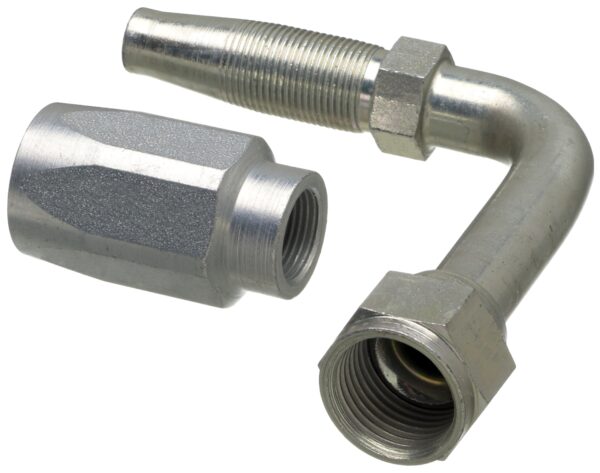

Field Attachable C5 Couplings
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Additional information
| Manufacturer | Gates |
|---|---|
| Angle | 90 |
| Coating | Zinc-plated |
| Configuration | Bent Tube |
| Cut off length | 2.12 in / 53.84 mm |
| End size | 10 |
| End type | FJSX |
| Fitting type | Dual Seat FJX/SAE |
| Hose dash size | 10 |
| Hose recommend | C5C, C5D, C5CHX, C5M |
| Material | Steel |
| Swivel | YES |
| Thread size | 7/8-14 |
| UOM | EA |
| SAE/ISO/DOT specifications | DOT FMVSS 106-74 Type AII |
| Second Name | 72352013 |
