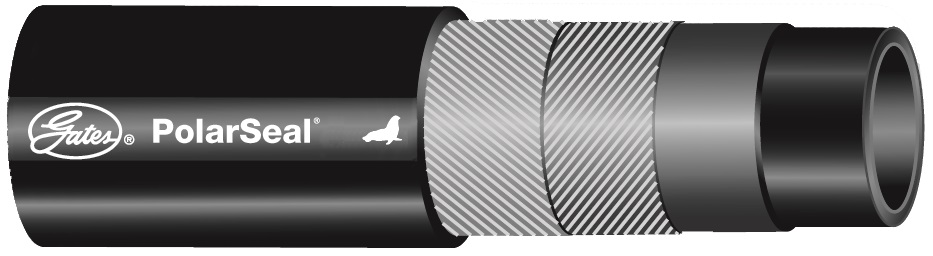

PolarSeal® Hose
PolarSeal® Hose is designed for environmentally-safe liquid and gaseous R134a and R12 refrigerant applications in automotive air conditioning and industrial systems, including tractors, construction trucks, and mobile and stationary refrigeration units. Designed to minimize permeation of R134a and R12 refrigerant.
PolarSeal® Hose is designed for environmentally-safe liquid and gaseous R134a and R12 refrigerant applications in automotive air conditioning and industrial systems, including tractors, construction trucks, and mobile and stationary refrigeration units. Designed to minimize permeation of R134a and R12 refrigerant.
| Manufacturer | Gates |
|---|---|
| Dash size | 10 |
| Max temperature | +125 C / +257 F |
| Min order quantity | 210 |
| UOM | FT |
| Hose pressure | Variable Pressure-Low |
| Reinforcement | 2-spiral, polyester, Nylon barrier |
| Dynamic WP | 500 psi / 34.5 bar |
| Min burst pressure | 2000 psi / 137.9 bar |
| Minimum temperature | -30 C / -22 F |
| Hose ID | 0.5 in / 12.7 mm |
| Hose OD | 1 in / 25.4 mm |
| Tube material | Polychloroprene (Neoprene) – Type A, Nylon Liner |
| Cover material | EPDM |
| Cover type | Standard |
| Cover color | Black |
| Length | 210 ft / 64 m |
| Min bend radius | 4 in / 101.6 mm |
| Vacuum (Hg) | 24 in / 610 mm |
| SAE specs & DOT | J51, J3062 |
| Second Name | 33530913 |
