Description
RECOMMENDED FOR: Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only.
Gates

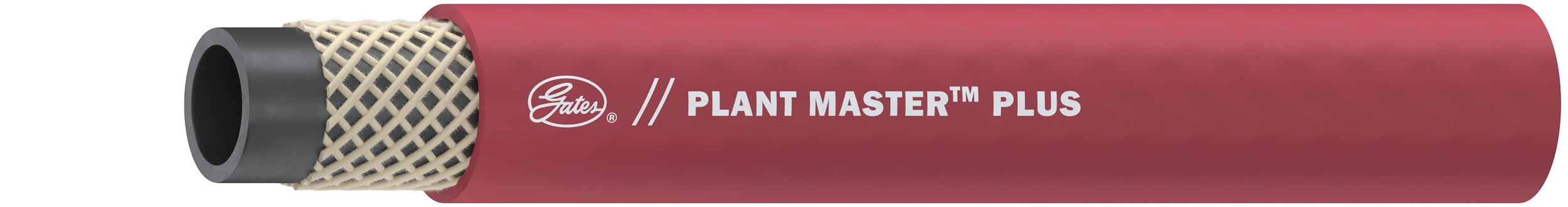

Gates | 32005657. 1-1/2X200 PLANT+ 250 RED. Plant Master™ Plus
32005657
Part Number: 32005657
RECOMMENDED FOR: Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only.
Additional information
| Manufacturer | Gates |
|---|---|
| Cover color | Red |
| Cover material | EPDM – Type P |
| Length | 200 ft / 61 m |
| Max temperature | 93 C / 200 F |
| Min bend radius | 12 in / 305 mm |
| Min order quantity | 3600 |
| Min temperature | -40 C / -40 F |
| Reinforcement | Synthetic textile |
| Tube material | Specially compounded elastomer – Type B1 |
| UOM | FT |
| Working pressure | 250 psi / 17.2 bar |
| Hose ID | 0.27 in / 12.227 mm |
| Hose OD | 0.314 in / 23.229 mm |
| Tube characteristics | Medium oil resistance |
| Vacuum (Hg) | 10 in / 254 mm |
| Cover standard | ARPM Class C |
| Tube standard | ARPM Class B |
| Second Name | 32005657 |
| Product line | Plant Master™ Plus |
