Graco CD3063 - DYNA-STAR COMPACT PUMP,60#

Graco CD3063 – DYNA-STAR COMPACT PUMP,60#

Part Number: CD3063

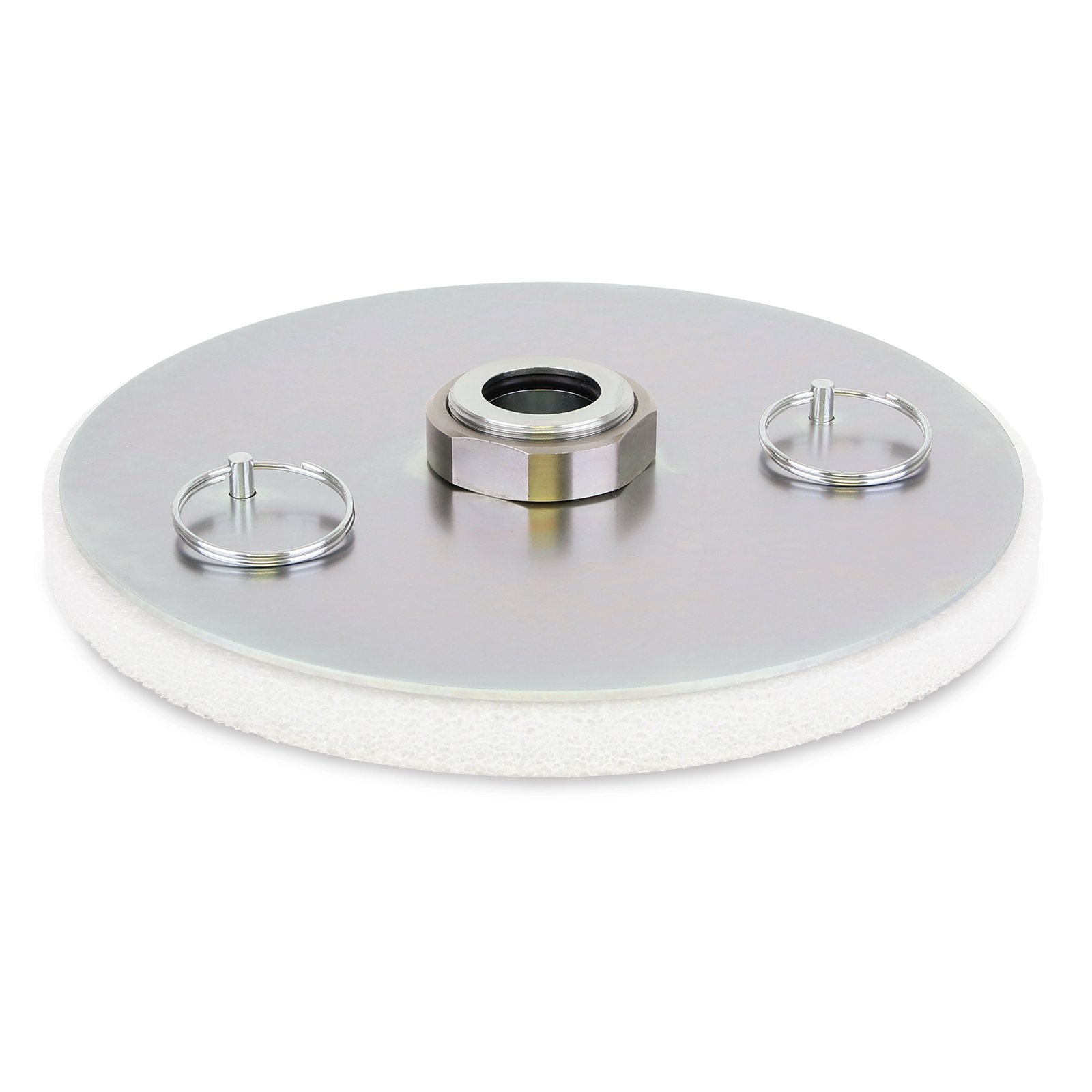

Compact Dyna-Star® 24 VDC Grease Pump and 60 lb Reservoir, Follower Plate, Low-Level Switch, Auto-Fill Shut Off

Description

Compact Dyna-Star® 24 VDC Grease Pump and 60 lb Reservoir, Follower Plate, Low-Level Switch, Auto-Fill Shut Off

Manufacturer	Graco
Primary UOM Code	EA
UPC Code	769946179224
Model	Dyna-Star
Application	In-Plant Machinery;Off-Road Equipment
Compatible material	Oil;Grease
Compatible metering device	Series Progressive
Fluid outlet size	3/8, 1/4 IN
Fluid outlet thread gender	Female
Fluid outlet thread type	NPT
Ip rating	IP69K
Max continuous cycle rate	64 CPM
Max cst grade	NLGI #2 CST
Max cycle rate	64 CPM / 64 strokes/min CPM
Max fill inlet pressure	BAR / 500 PSI
Max flow rate	4.5 CI/MIN / 0.074 L/MIN
Max fluid output pressure	241 BAR / 3500 PSI
Max intermittent cycle rate	64 CPM
Max nlgi grade	2
Max working pressure	241 BAR / 24100 KPA / 24.1 MPA / 3500 PSI
Minimum voltage	18 VDC
Motor type	Brushless DC
Number of outlets	2
Number of pump elements	1
Overall depth	15.6 IN / 39.62 CM / 396.2 MM
Overall height	28.4 IN / 72.14 CM / 721.4 MM
Overall width	38.1 CM / 15 IN / 381 MM
Power connection type	Deutsch DT04-2P Housing
Power type	Electric
Product type	Electric Piston Pump
Reservoir material	Steel
Reservoir size	30 L / 60 LB
Voltage	24 V
Weight	37.6 KG / 83 LB
Wetted material	Steel;Buna-N;Acetal;Lubrithane;Polyurethane;Brass;Polyethylene
Approvals	CE;EAC;RCM
Input voltage	24 VDC
Low level switch rating	24 VDC
Low level switching current	0.2 A
Lower type	Integrated Shovel Loading
Max voltage	30 VDC
Sound pressure level	70 DB(A)
