96G278

96G278

G3 STANDARD PUMP,G-24NC-4LHA06-00C00000

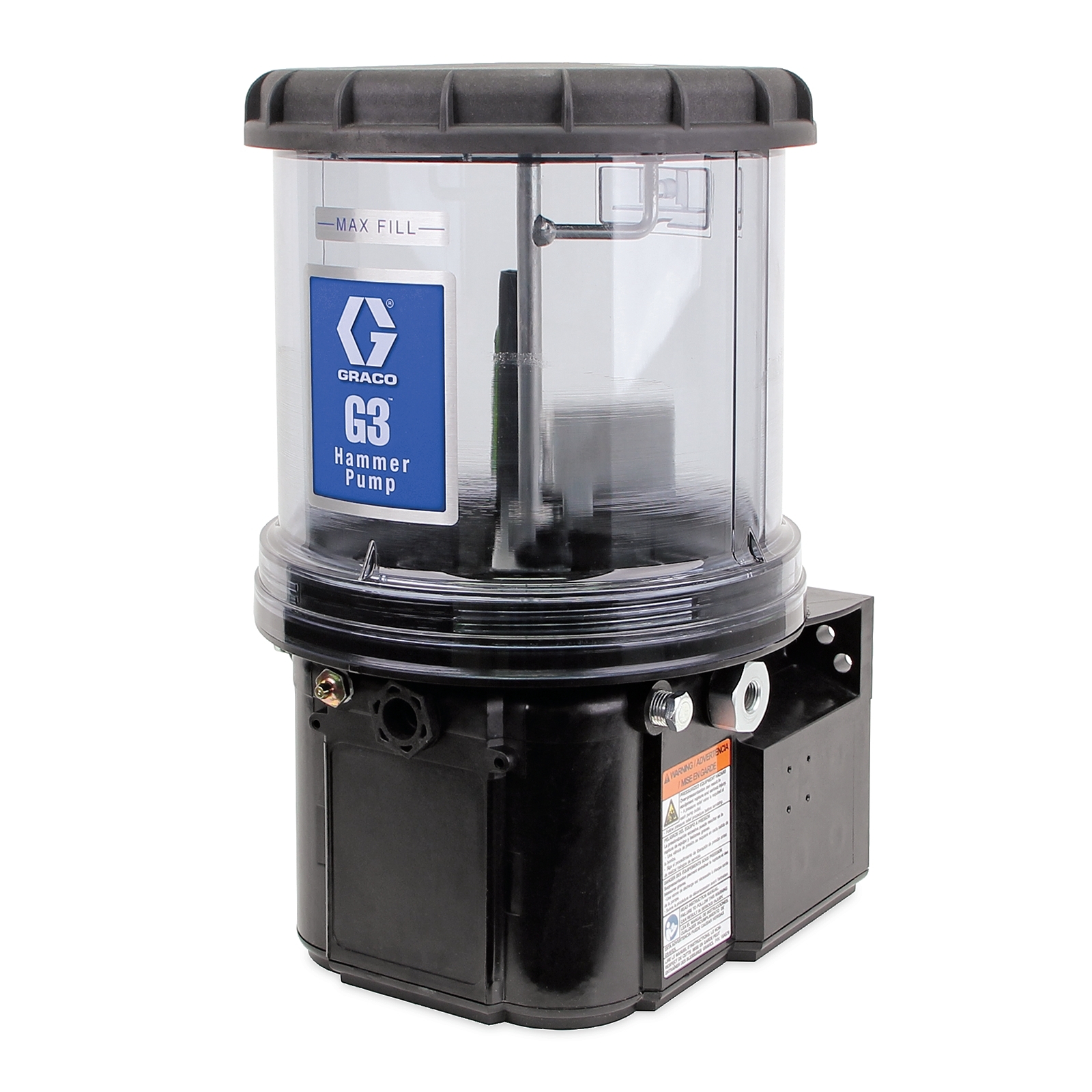

G3™ Hydraulic Breaker/Hammer Chisel Paste Lubrication Pump, 24 VDC, 4 Liter, CPC

Description

G3™ Hydraulic Breaker/Hammer Chisel Paste Lubrication Pump, 24 VDC, 4 Liter, CPC

Manufacturer	Graco
Primary application
Primary uom code	EA
Upc code	7.69946E+11
Model	G3
Application	Off-Road Equipment
Compatible material	Chisel Paste;Grease
For use with	Injector-Based Systems; Series Progressive Systems
Maximum working pressure	351.6 BAR / 35160 KPA / 35.1 MPA / 5100 PSI
Product type	Electric Piston Pump
Compatible metering device	Series Progressive;Single Line Parallel
Control options	Standard
Fluid outlet size	0.25 IN / 6.3500 MM
Fluid outlet thread gender	Female
Fluid outlet thread type	NPSF
Ip rating	IP69K
Maximum fill inlet pressure	344.7 BAR / 34470 KPA / 5000 PSI
Maximum nlgi grade	#2
Maximum run time	30 Min
Maximum voltage	32 VDC
Minimum voltage	18 VDC
Number of pump elements	Up to 3
Overall depth	10 IN / 25.4 CM / 254 MM
Overall width	23.5 CM / 9.25 IN / 235 MM
Power connection type	CPC
Power type	Electric
Reservoir size	1.06 GAL / 4 L
Voltage	24 VDC
Weight	6 KG / 13.3 LB
Wetted material	Nylon;Trogamid T5004-060;Zinc-Plated Steel;Carbon Steel;Alloy Steel;Stainless Steel;Nitrile Rubber;Bronze;Nickel Plated Alnico;Chemically Lubricated Acetal;Aluminum;PTFE;Grillamid
