Gates

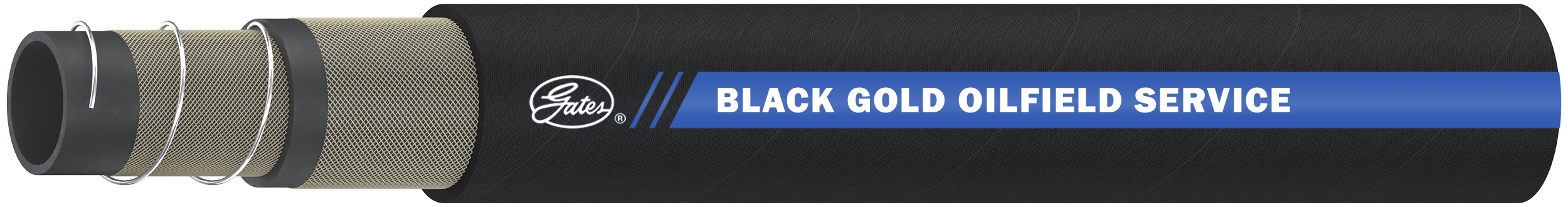

Gates | 46882048. 8X20 BG OILFIELD SERVICE 150SD. Black Gold™ Oilfield Service

46882048

Part Number: 46882048

RECOMMENDED FOR: Transfer of water, petroleum–based fluids, dilute acids, chemicals and abrasive slurries used in oil and gas well stimulation and fracking. Transfer of refined fuels (commercial gasoline, diesel fuel) oils and other petroleum products. Transfer hoses are designed for intermittent contact with refined fuels and must be drained after use. Ideal for offshore/onshore dock hose transfer applications involving discharge service for diesel oils and other similar petroleum
products where an extremely lightweight, flexible hose with a high rated working pressure and a small minimum bend radius is required. For Bio–Diesel and other alternative fuel applications, see Fuel Master™ XTreme™. Petroleum transfer
hoses may be used with all grades of Bio–Diesel only if the exposure is intermittent and the hose is drained between uses.

SKU: 8X20 BG OILFIELD SERVICE 150SD Category:

Description

RECOMMENDED FOR: Transfer of water, petroleum–based fluids, dilute acids, chemicals and abrasive slurries used in oil and gas well stimulation and fracking. Transfer of refined fuels (commercial gasoline, diesel fuel) oils and other petroleum products. Transfer hoses are designed for intermittent contact with refined fuels and must be drained after use. Ideal for offshore/onshore dock hose transfer applications involving discharge service for diesel oils and other similar petroleum
products where an extremely lightweight, flexible hose with a high rated working pressure and a small minimum bend radius is required. For Bio–Diesel and other alternative fuel applications, see Fuel Master™ XTreme™. Petroleum transfer
hoses may be used with all grades of Bio–Diesel only if the exposure is intermittent and the hose is drained between uses.

Additional information

Manufacturer

Gates

Cover color

Black

Cover material

SBR/Nitrile – Type D

Length

20 ft / 6.1 m

Max temperature

82 C / 180 F

Min bend radius

24 in / 610 mm

Min temperature

-40 C / -40 F

Reinforcement

Multi-ply, synthetic textile, dual wire helix

Tube material

Nitrile – Type C

UOM

EA

Working pressure

150 psi / 10.3 bar

Hose ID

0.1365 in / 12.1322 mm

Hose OD

0.1409 in / 23.1324 mm

Tube characteristics

High oil resistance

Cover characteristic

Smooth

Vacuum (Hg)

30 in / 762 mm

Cover standard

ARPM Class C

Tube standard

ARPM Class A

Second Name

46882048

Product line

Black Gold™ Oilfield Service
