Part Number: 44670014

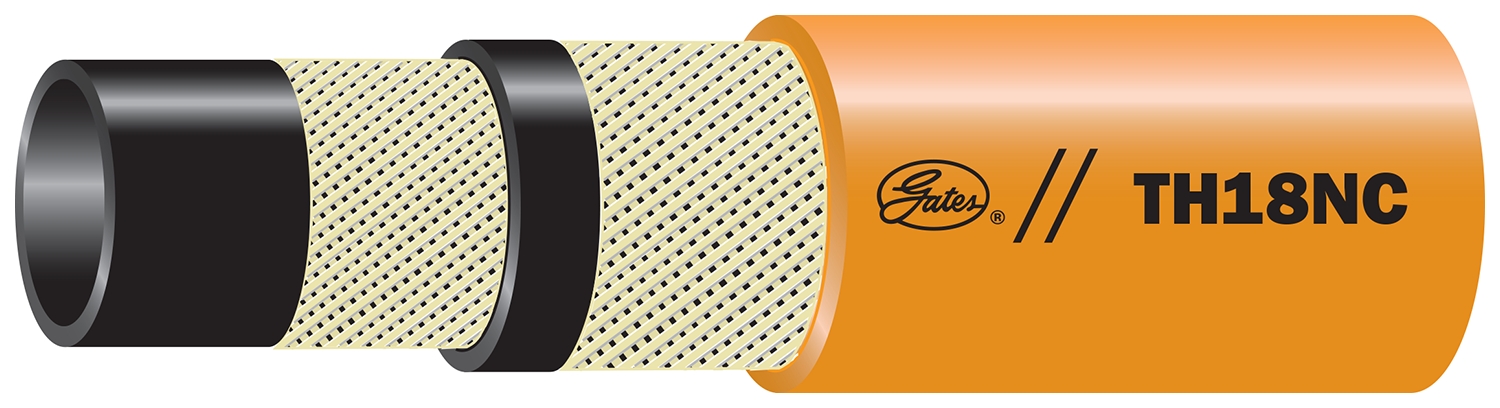

TH18NC Constant Pressure Non-Conductive hose is suitable for petroleum or synthetic-based hydraulic fluids in hydraulic systems and for use in high-voltage applications. Remains highly flexible in cold weather conditions and is resistant to hydraulic fluids, high temperatures, aging and weathering. Orange color TH18NC meets SAE 100R18 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R18 with a signifcantly tighter bend radius.
TH18NC Constant Pressure Non-Conductive hose is suitable for petroleum or synthetic-based hydraulic fluids in hydraulic systems and for use in high-voltage applications. Remains highly flexible in cold weather conditions and is resistant to hydraulic fluids, high temperatures, aging and weathering. Orange color TH18NC meets SAE 100R18 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R18 with a signifcantly tighter bend radius.
| Manufacturer | Gates |
|---|---|
| Dash size | 8 |
| Max temperature | +100 C / +212 F |
| Min order quantity | 250 |
| UOM | FT |
| Hose pressure | Constant Pressure-High |
| Reinforcement | 1-braid, synthetic fiber |
| Dynamic WP | 3000 psi / 206.8 bar |
| Min burst pressure | 12000 psi / 827.4 bar |
| Minimum temperature | -55 C / -67 F |
| Hose ID | 0.5 in / 12.7 mm |
| Hose OD | 0.89 in / 22.6 mm |
| Tube material | Polyester Elastomer, |
| Cover material | Urethane |
| Cover type | Standard |
| Cover color | Orange |
| Length | 250 ft / 76 m |
| Min bend radius | 2.8 in / 101.6 mm |
| SAE specs & DOT | 100R18 |
| Second Name | 44670014 |
| Product line | TH18 Constant Pressure Non-Conductive Hydraulic Hose |
