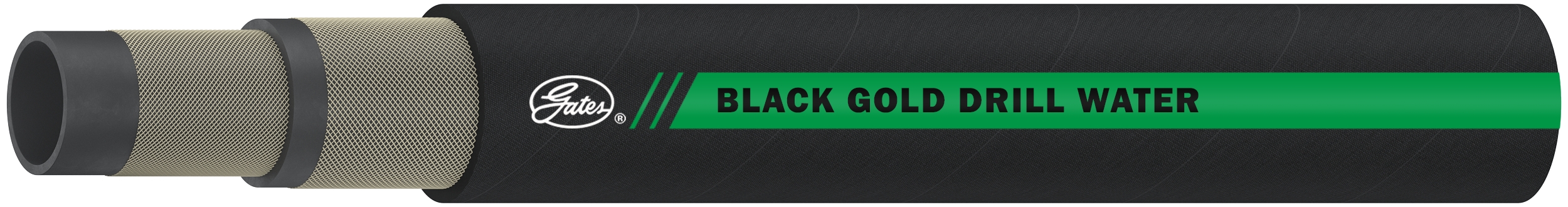

Part Number: 31371284
RECOMMENDED FOR: Transfer of non–potable water or liquids not containing oils or chemicals from a supply ship to an offshore drilling rig or platform. Various water–based transfer applications for offshore or onshore work sites. The heavy–duty reinforcement is designed to survive extreme oilfield application requirements. The specially compounded cover material is designed to withstand the harshest environment including abrasion and weathering.
RECOMMENDED FOR: Transfer of non–potable water or liquids not containing oils or chemicals from a supply ship to an offshore drilling rig or platform. Various water–based transfer applications for offshore or onshore work sites. The heavy–duty reinforcement is designed to survive extreme oilfield application requirements. The specially compounded cover material is designed to withstand the harshest environment including abrasion and weathering.
| Manufacturer | Gates |
|---|---|
| Cover color | Black |
| Cover material | EPDM – Type P |
| Length | 200 ft / 61 m |
| Max temperature | 66 C / 150 F |
| Min bend radius | 60 in / 1524 mm |
| Min order quantity | 400 |
| Min temperature | -40 C / -40 F |
| Reinforcement | Multi-ply, synthetic textile, static filament |
| Tube material | EPDM – Type P |
| UOM | FT |
| Working pressure | 300 psi / 20.7 bar |
| Hose ID | 0.1354 in / 12.1311 mm |
| Hose OD | 0.1398 in / 23.1313 mm |
| Cover characteristic | Wrapped |
| Vacuum (Hg) | 10 in / 254 mm |
| Second Name | 31371284 |
| Product line | Black Gold™ ABS Drill Water |
