Description
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for
easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
Gates

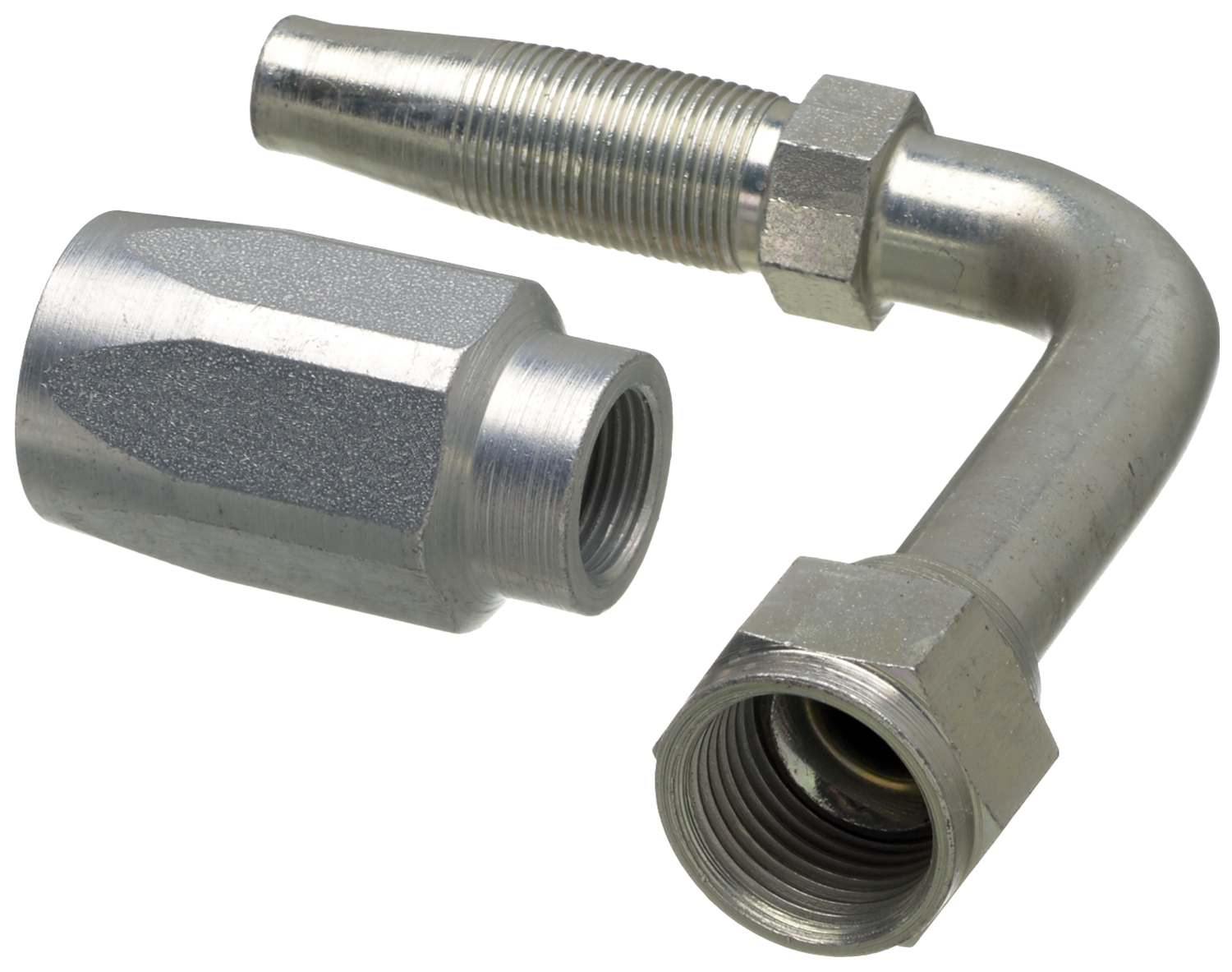

Gates | 723500305. 6C5E-6RFJX90. Field Attachable C5E Couplings
723500305
Part Number: 723500305
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for
easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
Additional information
| Manufacturer | Gates |
|---|---|
| Coating | Zinc-plated |
| Configuration | Bent Tube |
| End size | 6 |
| End type | FJX |
| Fitting type | JIC 37° Flare |
| Hose recommend | C5E |
| Material | Steel |
| Thread size | 9/16-18 |
| UOM | EA |
| Angle | 90 |
| Swivel | YES |
| Hose dash size | 6 |
| Cut off length | 1.36 in / 34.54 mm |
| SAE/ISO/DOT specifications | DOT FMVSS 106 Type A1 |
| Second Name | 723500305 |
| Product line | Field Attachable C5E Couplings |
