Description
RECOMMENDED FOR: Flexible connections between rigid fuel distribution lines and engine. Excellent for vent lines and emission control systems. Suitable for marine diesel and gasohol blends of ethanol, methanol and ethers up to 10%.
Gates

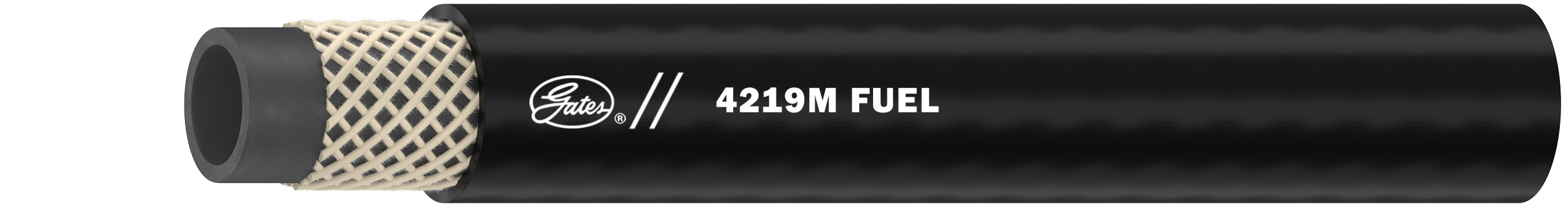

Gates | 42194580. 5/8X250 4219M MARINE FUEL 40. 4219M Marine Master™ Fuel Line
42194580
Part Number: 42194580
RECOMMENDED FOR: Flexible connections between rigid fuel distribution lines and engine. Excellent for vent lines and emission control systems. Suitable for marine diesel and gasohol blends of ethanol, methanol and ethers up to 10%.
Additional information
| Manufacturer | Gates |
|---|---|
| Cover color | Black |
| Cover material | Chloroprene – Type A |
| Length | 250 ft / 76.2 m |
| Max temperature | 100 C / 212 F |
| Min bend radius | 6 in / 152 mm |
| Min temperature | -40 C / -40 F |
| Reinforcement | Braided, synthetic textile |
| Tube material | Nitrile – Type C |
| UOM | EA |
| Working pressure | 40 psi / 2.8 bar |
| Hose ID | 0.116 in / 12.1117 mm |
| Hose OD | 0.1204 in / 23.1119 mm |
| Tube characteristics | High oil resistance |
| Cover characteristic | Smooth |
| Vacuum (Hg) | 28 in / 711 mm |
| SAE specifications | J1527 |
| Tube standard | ARPM Class A |
| Second Name | 42194580 |
| Product line | 4219M Marine Master™ Fuel Line |
