Part Number: 46881763
RECOMMENDED FOR: An economical, lightweight hose designed for oilfield waste pit recovery, tank truck service, including oilfield vacuum truck, where full suction or rated working pressures are required. Ideal for applications handling crude oil, salt and fresh water, tank bottoms, drilling mud, dilute solutions of hydrochloric acids and sewage transfer. Reference Gates Chemical Resistance Table.
RECOMMENDED FOR: An economical, lightweight hose designed for oilfield waste pit recovery, tank truck service, including oilfield vacuum truck, where full suction or rated working pressures are required. Ideal for applications handling crude oil, salt and fresh water, tank bottoms, drilling mud, dilute solutions of hydrochloric acids and sewage transfer. Reference Gates Chemical Resistance Table.
| Manufacturer | Gates |
|---|---|
| Cover color | Black |
| Cover material | SBR – Type D |
| Length | 100 ft / 30.5 m |
| Max temperature | 66 C / 150 F |
| Min bend radius | 8 in / 203 mm |
| Min order quantity | 100 |
| Min temperature | -40 C / -40 F |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube material | Nitrile – Type C |
| UOM | FT |
| Working pressure | 100 psi / 6.9 bar |
| Hose ID | 0.1302 in / 12.1259 mm |
| Hose OD | 0.1346 in / 23.1261 mm |
| Tube characteristics | Medium oil resistance |
| Cover characteristic | Corrugated |
| Vacuum (Hg) | 30 in / 762 mm |
| Tube standard | ARPM Class B |
| Second Name | 46881763 |

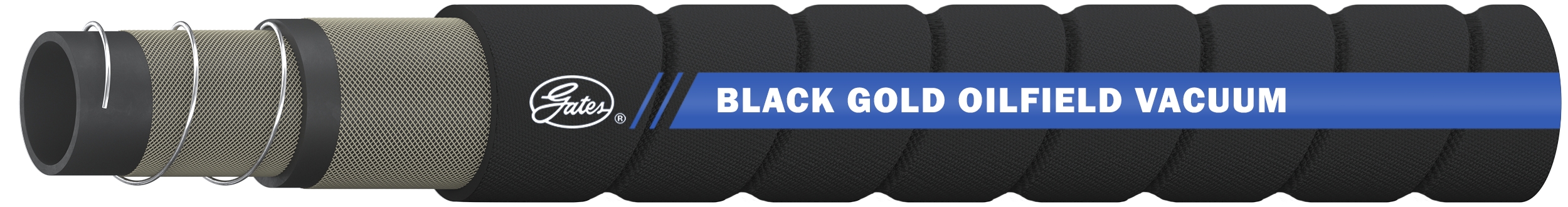

| Product line | Black Gold™ Oilfield Vacuum |
