Part Number: 32201300
RECOMMENDED FOR: Liquid or gaseous propane, butane or any combination of these two mixtures. Can be used for natural gas (not to exceed 50 psi) under certain conditions such as: open/outside areas and well ventilated factory buildings (if local building codes permit).
RECOMMENDED FOR: Liquid or gaseous propane, butane or any combination of these two mixtures. Can be used for natural gas (not to exceed 50 psi) under certain conditions such as: open/outside areas and well ventilated factory buildings (if local building codes permit).
| Manufacturer | Gates |
|---|---|
| Cover color | Black |
| Cover material | Chloroprene – Type A |
| Length | 50 ft / 15.2 m |
| Max temperature | 82 C / 180 F |
| Min bend radius | 3 in / 76 mm |
| Min temperature | -40 C / -40 F |
| Reinforcement | 4-spiral, fiber |
| Tube material | Nitrile – Type C |
| UOM | EA |
| Working pressure | 350 psi / 24.1 bar |
| Hose ID | 0.1485 in / 12.1442 mm |
| Hose OD | 0.1529 in / 23.1444 mm |
| Cover characteristic | Perforated |
| Vacuum (Hg) | 30 in / 762 mm |
| Tube standard | ARPM Class A |
| Meets MSHA 2G | YES |
| Second Name | 32201300 |

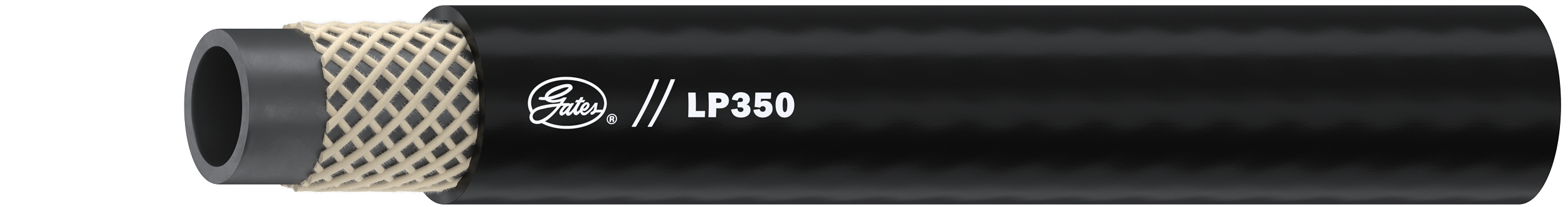

| Product line | LP350 |
