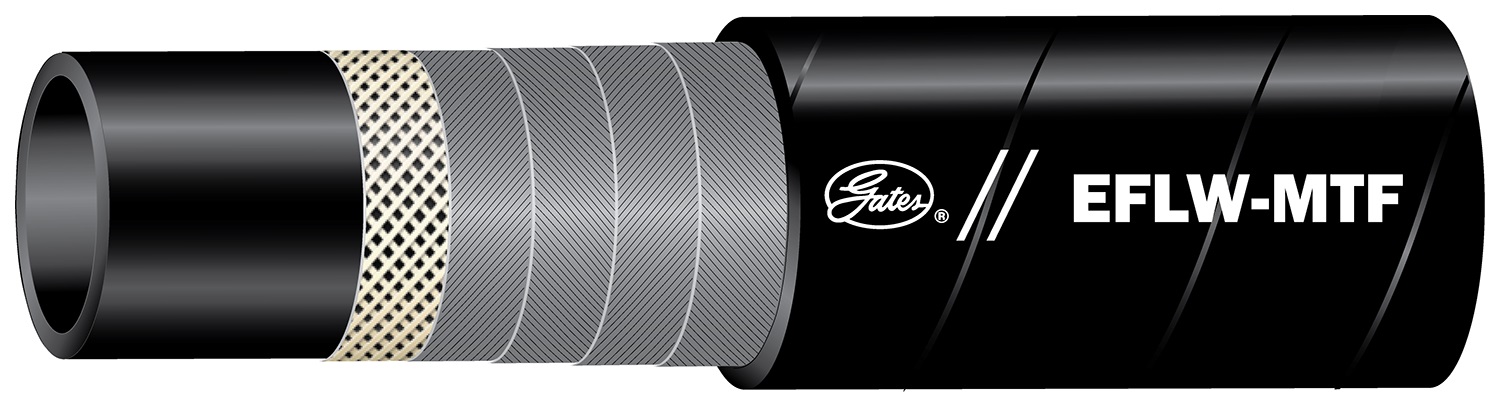

Gates | 46511806. 32EFLW-MTF XCTN. EFLW Mine Hose
Gates

Gates | 46511806. 32EFLW-MTF XCTN. EFLW Mine Hose

46511806

Part Number: 46511806

Recommended for: High-pressure hydraulic lines in longwall mining equipment and roof-support systems; petroleum-based or water emulsion fluids. Four spiral wire construction with static and dynamic pressure ratings listed on the hose.

Add to quote
SKU: 32EFLW-MTF XCTN Category:

Description

Recommended for: High-pressure hydraulic lines in longwall mining equipment and roof-support systems; petroleum-based or water emulsion fluids. Four spiral wire construction with static and dynamic pressure ratings listed on the hose.

Additional information

Manufacturer

Gates
Dash size

32
Max temperature

+121 C / +250 F
Min order quantity

100
UOM

FT
Hose pressure

Constant Pressure-Very High
Reinforcement

4-spiral, wire
Dynamic WP

3000 psi / 206.8 bar
Min burst pressure

12000 psi / 827.4 bar
Minimum temperature

-40 C / -40 F
Hose ID

2 in / 50.8 mm
Hose OD

2.63 in / 66.8 mm
Tube material

Nitrile, Oil Resistant
Cover material

MegaTuff
Cover type

MegaTuff
Cover color

Black
Length

100 ft / 30 m
Min bend radius

30 in / 86.4 mm
Meets MSHA 2G

YES
Second Name

46511806
Product line

EFLW Mine Hose
