Description
RECOMMENDED FOR: Cold and hot water up to +212°F (+100°C) where steam is injected into the water. Used for paper mill, food handling or processing plant washdown service requiring hose with a non–marking cover.
Gates

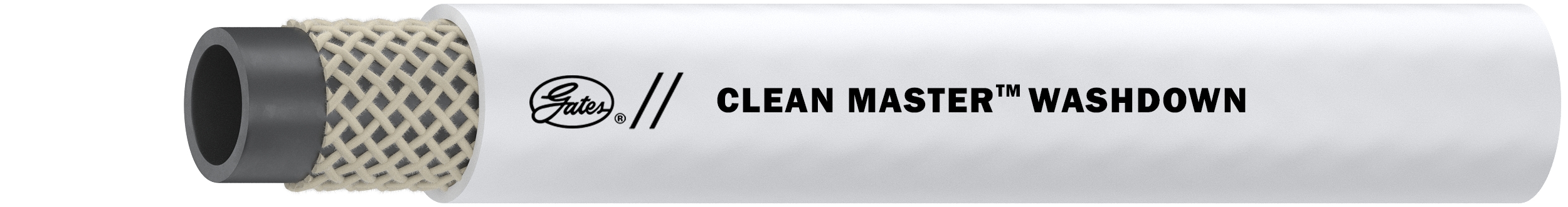

Gates | 32130512. 3/4X100 WASHDOWN WHIT W/O NOZZ. Clean Master™ Washdown
32130512
Part Number: 32130512
RECOMMENDED FOR: Cold and hot water up to +212°F (+100°C) where steam is injected into the water. Used for paper mill, food handling or processing plant washdown service requiring hose with a non–marking cover.
Additional information
| Manufacturer | Gates |
|---|---|
| Cover color | White |
| Cover material | EPDM – Type P |
| Length | 100 ft / 30.5 m |
| Max temperature | 100 C / 212 F |
| Min bend radius | 6 in / 152 mm |
| Min order quantity | 3600 |
| Min temperature | -40 C / -40 F |
| Reinforcement | Synthetic textile |
| Tube material | EPDM – Type P |
| UOM | FT |
| Working pressure | 200 psi / 13.8 bar |
| Hose ID | 0.1571 in / 12.1528 mm |
| Hose OD | 0.1615 in / 23.153 mm |
| Cover characteristic | Perforated |
| Vacuum (Hg) | 15 in / 381 mm |
| Second Name | 32130512 |
| Product line | Clean Master™ Washdown |
