Description
RECOMMENDED FOR: Flexible connector for conveying low–pressure LPG (vapor only) to many types of farm and industrial heating applications; e.g., space heaters.
Gates

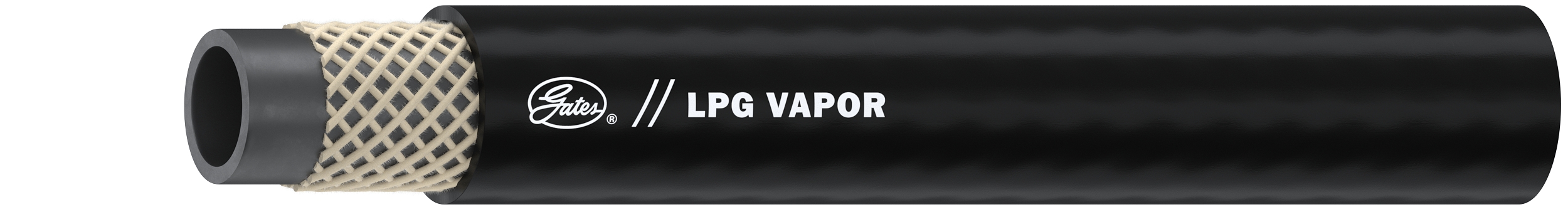

Gates | 32200451. 3/16XRL FUEL LPG VAPOR 125. LPG Vapor 125
32200451
Part Number: 32200451
RECOMMENDED FOR: Flexible connector for conveying low–pressure LPG (vapor only) to many types of farm and industrial heating applications; e.g., space heaters.
Additional information
| Manufacturer | Gates |
|---|---|
| Cover color | Black |
| Cover material | Chloroprene – Type A |
| Length | 700 ft / 213.3 m |
| Max temperature | 66 C / 150 F |
| Min bend radius | 2 in / 51 mm |
| Min order quantity | 700 |
| Min temperature | -34 C / -30 F |
| Reinforcement | 2-spiral, textile |
| Tube material | Nitrile – Type C |
| UOM | FT |
| Working pressure | 125 psi / 8.6 bar |
| Hose ID | 0.1458 in / 12.1415 mm |
| Hose OD | 0.1502 in / 23.1417 mm |
| Cover characteristic | Smooth |
| Vacuum (Hg) | 30 in / 762 mm |
| Second Name | 32200451 |
| Product line | LPG Vapor 125 |
