Description
RECOMMENDED FOR: Conveying hot air up to +350°F from blower or compressor to storage tank used in the transfer of dry bulk commodities. Can also be used for transferring mild chemicals at ambient temperatures.
Gates
3-1/2X100 HOT AIR BLWR 85SD
46910505

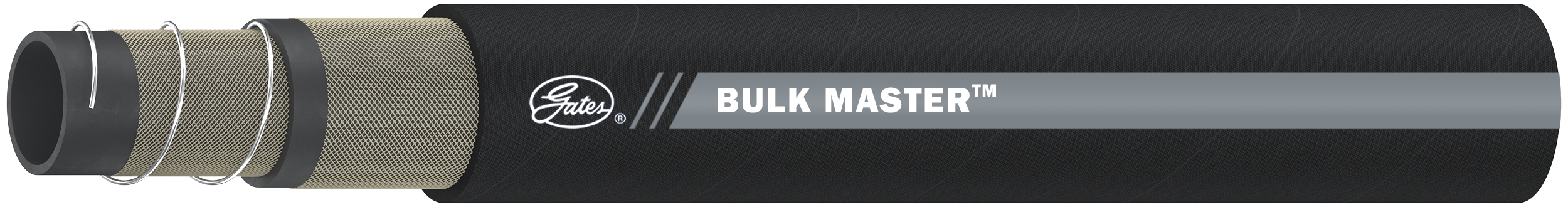

Bulk Master™ Hot Air Blower
RECOMMENDED FOR: Conveying hot air up to +350°F from blower or compressor to storage tank used in the transfer of dry bulk commodities. Can also be used for transferring mild chemicals at ambient temperatures.
Additional information
| Manufacturer | Gates |
|---|---|
| Cover color | Black |
| Cover material | EPDM – Type P |
| Length | 100 ft / 30.5 m |
| Max temperature | 177 C / 350 F |
| Min bend radius | 21 in / 533 mm |
| Min order quantity | 400 |
| Min temperature | -40 C / -40 F |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube material | EPDM – Type P |
| UOM | FT |
| Working pressure | 85 psi / 5.9 bar |
| Hose ID | 0.1202 in / 12.1159 mm |
| Hose OD | 0.1246 in / 23.1161 mm |
| Cover characteristic | Wrapped |
| Vacuum (Hg) | 30 in / 762 mm |
| Second Name | 46910505 |
