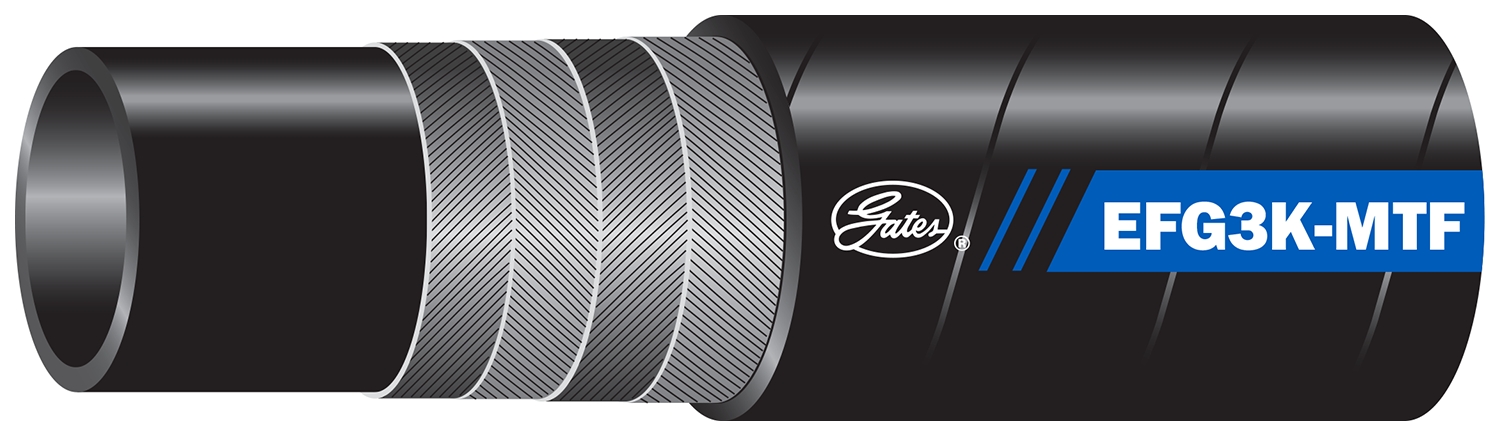

Part Number: 46512201
EFG3K is recommended for very high-pressure, high-impulse hydraulic applications and is compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Exceeds all performance requirements for ISO 18752 Grade D, SAE 100R12, EN 856 R12, performance requirements of EN 856 4SP, and ISO 3862 Type R12.
EFG3K is recommended for very high-pressure, high-impulse hydraulic applications and is compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Exceeds all performance requirements for ISO 18752 Grade D, SAE 100R12, EN 856 R12, performance requirements of EN 856 4SP, and ISO 3862 Type R12.
| Manufacturer | Gates |
|---|---|
| Dash size | 24 |
| Max temperature | +121 C / +250 F |
| Min order quantity | 50 |
| UOM | FT |
| Hose pressure | Constant Pressure-Very High |
| Reinforcement | 4-spiral, wire |
| Dynamic WP | 3000 psi / 206.8 bar |
| Min burst pressure | 12000 psi / 827.4 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 1.5 in / 38.1 mm |
| Hose OD | 2.11 in / 53.6 mm |
| Tube material | Nitrile – Type C, Oil Resistant |
| Cover material | MegaTuff |
| Cover type | MegaTuff |
| Cover color | Black |
| Length | 50 ft / 15 m |
| Min bend radius | 10 in / mm |
| SAE specs & DOT | 100R12 |
| Meets MSHA 2G | YES |
| Second Name | 46512201 |
| Product line | EFG3K Hydraulic Hose |
